Harrington

Model # :WBB440626

MPN #: NERP010SD-15

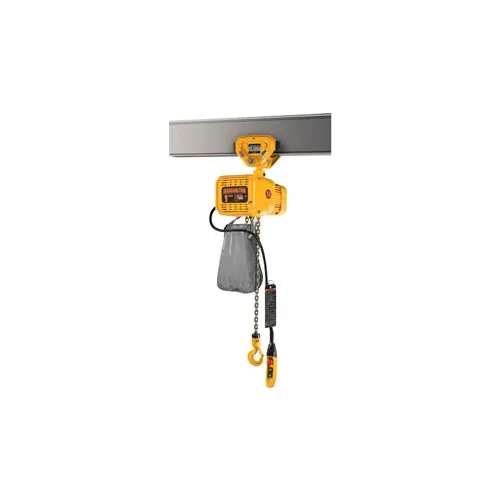

Harrington NER 1 Ton, Dual Speed Electric Hoist W/ Push Trolley, 15' Lift, 28/4.5 FPM, 460V

Product Description
The NERP dual speed series of electric chain hoists from Harrington incorporate a push/pull trolley with an under the cover variable frequency drive giving the hoist amazing load control and field adjustable two speeds with up to a 12:1 speed ratio. Features include "The Guardian": Smart Brake Technology, a current driven electromagnetic brake that does not release unless the motor is energized, Grade 80 nickel plated load chain, variable frequency drive allowing speed adjustability and integral count hour functionality which records and displays the number of lowering starts and hoist on time, 5 pocket load sheave to reduce vibration and extend chain life, cooler motor and brake attributed to the fan cooled motor, low profile upper and lower limit switches and plug in pendant and power supply cords. Hoist are UL listed to UL 1340, built environmentally friendly meeting RoHS requirements and exceed ASME H4 Duty Rating. All Hoist are provided with test certificate verifying hoist has been factory load tested to 125% of rated capacity, in accordance to ASME B30.16.

PRICE
$7,349.00

1
1
Ships in 17 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight Capacity2000 lbs
Weight139 lbs
Control Cord Length11 ft
Lift15 ft
Flange Width2-9/32 to 5 in
Head Room18-1/2 in
Lift Speed28/4.5 ft/min

Product Details

Assembly RequiredYes
Number of Speeds2
ClutchFriction
MaterialDie-Cast Aluminum Body
Phase3
BrakeDC Current
Manufacturers Part NumberNERP010SD-15
BrandHarrington
TypeChain Hoist
Horsepower2-3/8 HP
ColorYellow
SeriesNER
Hertz60 Hz
Voltage460 V
Trolley ConfigurationPush Trolley
Control110V Push Button Control Pendant
Operating Conditions-4°F to 104°F

Warranty

Warranty10 yr
