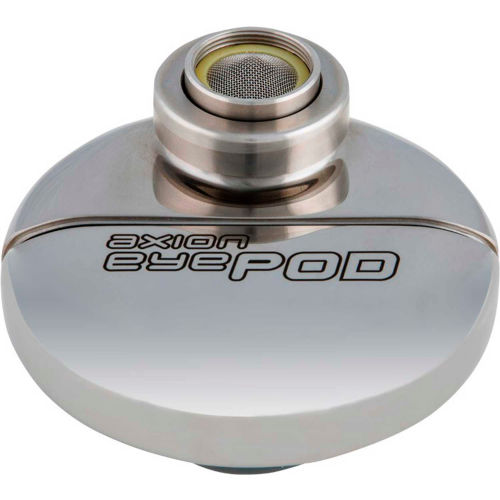

Haws® AXION® eyePOD® SS Faucet-Mounted Eyewash
Model 7620 AXION® eyePOD® faucet mounted eyewash (patent pending). Constructed of stainless steel with a polished finish, the unit shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral .9 gpm (3.4 L) flow control. The faucet outlet flows at .5 gpm (1.9 L). The standard faucet connection is 55/64-27 stainless steel female thread, along with four additional adapters; 15/16-27 male, 13/16-27 male, 3/8-18 male and 13/16-24 female. An optional 1 gpm (3.8 L) laminar flow faucet outlet is also supplied. A thermostatic shutoff is used for water temperatures over 100° F (37.8° C). Operating pressure; 30-90 psi (2.1 - 6.2 bar). Dim; Diameter 3.5 in. (8.9 cm), height (from top to faucet outlet) 2 in. (5 cm)
Share
Spec Sheet
BESTSELLER
Haws® AXION® eyePOD®, 7620, SS Faucet-Mounted Eyewash
(3)
|
Questions & Answers (0)
Product Description
PRICE
$289.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Product Details
| Type | Eye & Face Wash Station |
| Mounting Location | Faucet Mount |
| Material | Stainless Steel/ABS Plastic |
| Description | Axion MSR™ EyePOD®Eyewash |
| Color | Silver |
| Series | AXION® |
| Eyewash Flow Rate | 1 gal/min |
| Manufacturers Part Number | 7620 |
| Eyewash Flow Pressure | 30 psi |
| Mixing Valve | Thermostatic |
| Eyewash Activation | Rotate Head |
| Brand | Haws |
