Features
- Heavy gauge steel base
- Ball bearings
- Suitable for mounting in any position
- Dynamically balanced rotors for reduced vibration and quiet operations
- Ventilators, direct-drive or belted fan and ventilation applications.

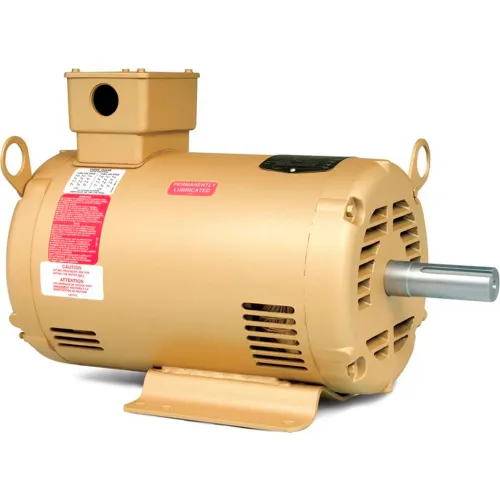

Baldor-Reliance HVAC Motor, EHM3218TA, 3 PH, 5 HP, 208-230/460 V, 1750 RPM, OPSB, 184T Frame
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.
Features
Features
PRICE
$1,345.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 16.5 in |
| Width | 17.5 in |
| Height | 17.5 in |
| Weight | 84 lbs |
| Shaft Diameter | 1.125 in |
| Opposite End Bearing Size | 6205 |
| Frame Size | 184T |
| Drive End Bearing Size | 6313 |
| Length Less Shaft | 22 in |
Product Details
| Number of Speeds | 1 |
| Motor RPM 60 Hertz | 1750 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | EHM3218TA |
| Enclosure | OPSB |
| Service Factor | 1.15 |
| Brand | Baldor-Reliance |
| Bearing Type | Ball |
| Insulation Class | F |
| Horsepower | 5 HP |
| Frame | 184T |
| Hertz | 60 Hz |
| Design Code | B |
| Rotation | CCW/CW ° |
| Thermal Protection | Automatic |
| Enclosure Type | Open/Drip Proof |
| Voltage | 208-230/460 V |
| Full Load Efficiency | 89.5 |
| Full Load Amps | 14-13.2/6.6 FLA |
| Duty | Continuous |
| Rated RPM | 1750 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| Certifications | CSA; CSA EEV; UR |
