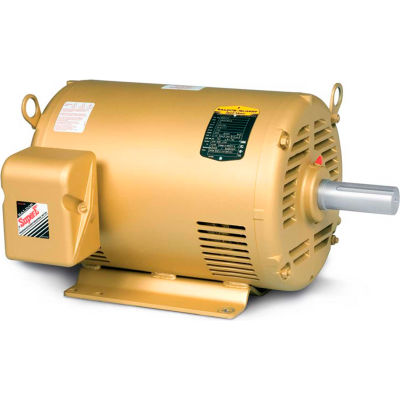

Baldor-Reliance HVAC Motor, EM2515T-G, 3 PH, 20 HP, 230/460 V, 1765 RPM, OPSB, 256T Frame
Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.
Features
Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.
Features
- Class H insulated motor with AEGIS® bearing protection ring installed internally
- Regreasable ball bearings
- Dynamically balanced rotors for reduced vibration and quiet operation
- Suitable for mounting in any position
- All models meet or exceed NEMA Premium® efficiencies, are Inverter Ready, and have a 3-year warranty
- Heating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive.
Weights & Dimensions
- Width 19.5 in
- Length 23.19 in
- Height 19.5 in
- Drive End Bearing Size 6312
- Shaft Diameter 1.625 in
- Frame Size 254T
- Opposite End Bearing Size 6208
- Length Less Shaft 27 in
- Weight 243 lbs
Product Details
- Enclosure Type Open/Drip Proof
- Horsepower 20 HP
- Is_Motor Yes
- Duty Continuous
- Phase 3
- Enclosure OPSB
- Full Load Efficiency 93
- Brand Baldor-Reliance
- Bearing Type Ball
- Full Load Amps 47/23.5 FLA
- Design Code B
- Motor RPM 60 Hertz 1765 rpm
- Thermal Protection None
- Hertz 60 Hz
- Manufacturers Part Number EM2515T-G
- Mounting Location Rigid
- Number of Speeds 1
- Rotation CCW/CW °
- Ambient Temperature 40 °C
- Insulation Class H
- RPM Range 1701-1800 rpm
- Voltage 230/460 V
- Rated RPM 1765
- Frame 256T
- Service Factor 1.15
Compliance & Certifications
- Certifications CSA; CSA EEV; UR
