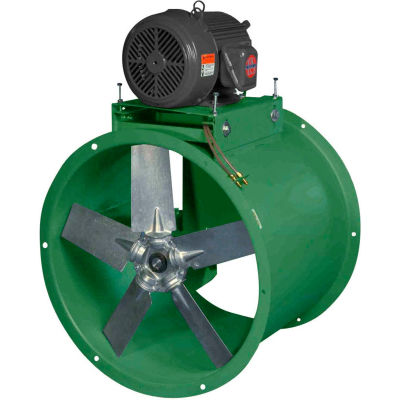

Canarm 18" Three Phase Belt Drive Tube Axial Duct Fan BTA18T30200M 2HP, 6590 CFM

Canarm 18" Three Phase Belt Drive Tube Axial Duct Fan BTA18T30200M 2HP, 6590 CFM

Item #: WBB1659552

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,479.00

Quantity

Popular item in this category

Canarm 18" Three Phase Belt Drive Tube Axial Duct Fan WTA18T30200M 2HP, 6590 CFM

Usually ships in 25 to 28 days

Not Yet Rated

$1,750.00

Customers Also Viewed

Canarm 18" Three Phase Belt Drive Tube Axial Duct Fan BTA18T30200M 2HP, 6590 CFM

Designed for duct connected applications such as paint booth exhaust, air make-up fans or general exhaust. The BTA series includes an adjustable motor base, heavy duty pillow block ball bearings with high temperature grease, extended lube lines with external grease fittings. TEFC motors are standard and models up to 42" come with cast aluminum blades. 48", 54" and 60" models have polypropylene reinforced fiberglass blades. BTA models are ideally suited for applications involving clean, dry air with a maximum temperature of 200F.

Features:
  • Adjustable motor base
  • Heavy duty pillow block ball bearings w/ high temp. grease
  • Cast aluminum blades

Product Specifications

  • BLADE QUANTITY8
  • BLOWER TYPETube Axial Duct Fan
  • BRANDCanarm
  • CFM HIGH6,590
  • CFM LOW4,790
  • CLASSD
  • COLORGreen
  • CONSTRUCTIONHeavy Guage Welded Steel
  • DECIBELS (DBA)72
  • DEPTH INCHES21
  • DESCRIPTION18" Three Phase Belt Drive Tube Axial Duct Fan
  • FAN DIAMETER INCHES18
  • FINISHPowder Coat
  • HEIGHT INCHES21-3/8
  • HERTZ (HZ)60
  • HORSEPOWER2
  • INSIDE DIMENSIONS INCHES18-3/8
  • MANUFACTURER PART NUMBERBTA18T30200M
  • MANUFACTURER WARRANTY1 Year
  • MODELBTA
  • MOUNTING LOCATIONInline Duct
  • OVERALL HEIGHT INCHES26
  • OVERALL WIDTH INCHES26
  • PHASE3
  • RPM HIGH2,510
  • TYPEFor Clean, Dry Air W/ A Max. Temp. Of 200F
  • VOLTAGE208 / 230 / 460
  • WIDTH INCHES21-3/8
