Canarm 30" Three Phase Belt Drive Tube Axial Duct Fan WTA30T30100M 1HP, 10800 CFM

Canarm 30" Three Phase Belt Drive Tube Axial Duct Fan WTA30T30100M 1HP, 10800 CFM

Item #: WBB1659480

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 115
  • 208 / 230 / 460

208 / 230 / 460

Price: $2,385.00

Quantity

Popular item in this category

Canarm 30" Three Phase Belt Drive Tube Axial Duct Fan BTA30T30100M 1HP, 10800 CFM

Usually ships in 25 to 28 days

Not Yet Rated

$1,846.00

Customers Also Viewed

Canarm 30" Three Phase Belt Drive Tube Axial Duct Fan WTA30T30100M 1HP, 10800 CFM

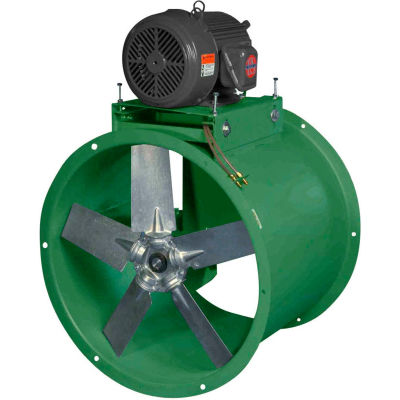

Designed for duct connected applications such as paint booth exhaust, air make-up fans or general exhaust. The WTA series includes an adjustable motor base, heavy duty pillow block ball bearings with moisture displacement collars, extended lube lines with external grease fittings. TEFC motors are standard and models up to 42" come with cast aluminum blades. 48", 54" and 60" models have polypropylene reinforced fiberglass blades. WTA models are ideally suited for applications involving moisture laden air with a maximum temperature of 200F.

Features:
  • Adjustable motor base
  • Heavy duty pillow block bearings w/ moisture displacement collars
  • Cast aluminum blades

Product Specifications

  • BLADE QUANTITY6
  • BLOWER TYPETube Axial Duct Fan
  • BRANDCanarm
  • CFM HIGH10,800
  • CFM LOW2,620
  • CLASSD
  • COLORGreen
  • CONSTRUCTIONHeavy Guage Welded Steel
  • DECIBELS (DBA)58
  • DEPTH INCHES21
  • DESCRIPTION30" Three Phase Belt Drive Tube Axial Duct Fan
  • FAN DIAMETER INCHES30
  • FINISHPowder Coat
  • HEIGHT INCHES33-3/8
  • HERTZ (HZ)60
  • HORSEPOWER1
  • INSIDE DIMENSIONS INCHES30-3/8
  • MANUFACTURER PART NUMBERWTA30T30100M
  • MANUFACTURER WARRANTY1 Year
  • MODELWTA
  • MOUNTING LOCATIONInline Duct
  • OVERALL HEIGHT INCHES38
  • OVERALL WIDTH INCHES38
  • PHASE3
  • RPM HIGH965
  • TYPEFor Moisture Laden Air W/ A Max. Temp. Of 200F
  • VOLTAGE208 / 230 / 460
  • WIDTH INCHES33-3/8
