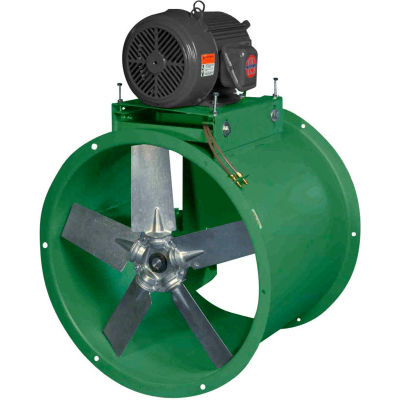

Canarm 48" Three Phase Belt Drive Tube Axial Duct Fan WTA48T30300M 3HP, 25790 CFM

Canarm 48" Three Phase Belt Drive Tube Axial Duct Fan WTA48T30300M 3HP, 25790 CFM

Item #: WBB1659482

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 115
  • 208 / 230 / 460

208 / 230 / 460

Price: $4,418.00

Quantity

Popular item in this category

Canarm 48" Three Phase Belt Drive Tube Axial Duct Fan BTA48T30300M 3HP, 25790 CFM

Usually ships in 25 to 28 days

Not Yet Rated

$3,741.00

Customers Also Viewed

Canarm 48" Three Phase Belt Drive Tube Axial Duct Fan WTA48T30300M 3HP, 25790 CFM

Designed for duct connected applications such as paint booth exhaust, air make-up fans or general exhaust. The WTA series includes an adjustable motor base, heavy duty pillow block ball bearings with moisture displacement collars, extended lube lines with external grease fittings. TEFC motors are standard and models up to 42" come with cast aluminum blades. 48", 54" and 60" models have polypropylene reinforced fiberglass blades. WTA models are ideally suited for applications involving moisture laden air with a maximum temperature of 200F.

Features:
  • Adjustable motor base
  • Heavy duty pillow block bearings w/ moisture displacement collars
  • Cast aluminum blades

Product Specifications

  • BLADE QUANTITY8
  • BLOWER TYPETube Axial Duct Fan
  • BRANDCanarm
  • CFM HIGH25,790
  • CFM LOW17,780
  • CLASSD
  • COLORGreen
  • CONSTRUCTIONHeavy Guage Welded Steel
  • DECIBELS (DBA)63
  • DEPTH INCHES32
  • DESCRIPTION48" Three Phase Belt Drive Tube Axial Duct Fan
  • FAN DIAMETER INCHES48
  • FINISHPowder Coat
  • HEIGHT INCHES51-3/8
  • HERTZ (HZ)60
  • HORSEPOWER3
  • INSIDE DIMENSIONS INCHES48-3/8
  • MANUFACTURER PART NUMBERWTA48T30300M
  • MANUFACTURER WARRANTY1 Year
  • MODELWTA
  • MOUNTING LOCATIONInline Duct
  • OVERALL HEIGHT INCHES56
  • OVERALL WIDTH INCHES56
  • PHASE3
  • RPM HIGH745
  • TYPEFor Moisture Laden Air W/ A Max. Temp. Of 200F
  • VOLTAGE208 / 230 / 460
  • WIDTH INCHES51-3/8
