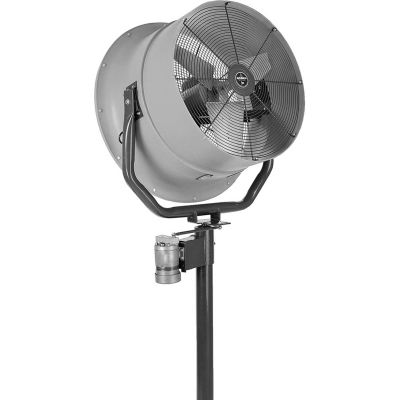

Jetaire® 30 Inch High Velocity Fan, Oscillating, 460 V, 3PH, 7900 CFM, 1/2 HP, Gray HV3013OC-Z

Jetaire® 30 Inch High Velocity Fan, Oscillating, 460 V, 3PH, 7900 CFM, 1/2 HP, Gray HV3013OC-Z

Item #: WB245478

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 230
  • 460

460

  • SELECT
  • Hunter Green
  • Industrial Gray

Industrial Gray

Price: $1,908.99

$318.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,908.99 or save 5% on purchase.

Quantity

Jetaire® 30 Inch High Velocity Fan, Oscillating, 460 V, 3PH, 7900 CFM, 1/2 HP, Gray HV3013OC-Z

This 30" JetAire high velocity fan moves a large concentration of air 135' or more with 90° oscillation and a tilt head for precise, directional air movement. It is manufactured with a durable polypropylene industrial gray barrel and equipped with 460-volt three phase totally enclosed direct drive 1/2 HP motor. Mounting options include pedestal base, vertical mounting bracket for ceiling attachments (safety cable included), horizontal mounting bracket for column mounts, and 6' and 10' poles for permanent concrete placement. Cool misting kit available.

Product Specifications

  • BRANDTriangle Engineering
  • CFM HIGH7,900
  • WIDTH INCHES40
  • HEIGHT INCHES52
  • DEPTH INCHES23
  • FAN DIAMETER INCHES30
  • WEIGHT LBS196
  • MANUFACTURER'S PART NUMBERHV3013OC-Z
  • COLOR FINISHIndustrial Gray
  • CONSTRUCTIONSteel / Polypropylene
  • HORSEPOWER1/2
  • FAN TYPEIndustrial, Agricultural
  • RPM HIGH 1,075
  • PHASE3
  • AMPS1.3
  • HERTZ (HZ)60
  • VOLTAGE460
  • SPEEDS1
  • MOTOR TYPETotally Enclosed
  • DRIVE TYPEDirect Drive
  • OSCILLATING/NON-OSCILLATINGOscillating
  • LIMITED WARRANTY YEARS1
  • APPLICATIONWarehouses, Commercial Buildings, Golf Courses
  • MOUNT TYPEPedestal , Pole, Wall
  • POWER CORD TYPESJO Type Plug
  • POWER CORD LENGTH FEET6
  • MAX AMBIENT TEMPERATURE °F104
  • BLADE TYPEAluminum
  • BLADE QUANTITY3
  • DISTANCE AIR THROW FEET135
  • MODEL245478
  • Base Model Number245478
