Grundfos UP15-42FR Circulator Water Pump 59896167, Cast Iron, 115V, 1/25 HP

Grundfos UP15-42FR Circulator Water Pump 59896167, Cast Iron, 115V, 1/25 HP

Item #: WBB1012663

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $132.95

Save $6.65 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Grundfos UP15-42FR Circulator Water Pump 59896167, Cast Iron, 115V, 1/25 HP

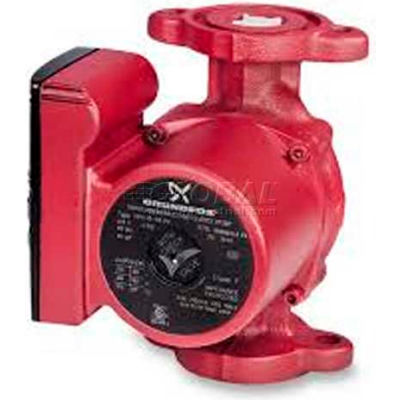

Grundfos UP15-42FR cast iron circulator pump model incorporates a rotated flange design and is intended for closed loop heating systems such as radiant/hydronic/fan coils, etc.

Features:

  • Built-in motor protection for longer life and better performance.
  • Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
  • Whisper-quiet operation for sound sensitive installations.
  • Includes (2) Gaskets (O-rings)
  • Made in the USA.


Product Specifications

  • BRANDGrundfos
  • LENGTH INCHES4
  • WIDTH INCHES6
  • HEIGHT INCHES6-1/2
  • WEIGHT LBS6.75
  • COLORRed
  • HOUSING MATERIALCast iron
  • IMPELLER MATERIALComposite, PES
  • PRESSURE PSI145
  • VOLTAGE115
  • MAXIMUM AMBIENT TEMPERATURE °F104 °F
  • HERTZ60
  • AMPS0.74
  • HORSEPOWER1/25
  • CONNECTION TYPECast Iron Flange
  • APPROVALS OR CERTIFICATIONSUL, CSA
  • LIMITED WARRANTY YEARS1
  • MANUFACTURER'S PART NUMBER59896167
  • MODELUP15-42FR
  • FLANGE STANDARDUSA Oval
  • AMBIENT MAX AT 176°F LIQUID176 °F
  • PORT TO PORT LENGTH INCHES6-1/2
  • PIPE CONNECTION2 - Bolt Flange
  • NUMBER OF POLES2
  • CAPACITOR SIZE - RUN10 μF/180 V
  • MAX. POWER INPUT85 W
  • HEAD FEET0-15.1
  • SYSTEM TYPEClosed
  • THERMAL PROTECTIONInternal
  • MOTOR PROTECTIONContact
  • FLOW U.S. GPM0-17.2
  • POS TERM BOX9H
  • MAX. AMPS0.74
  • MAX. WATTS85
  • NUMBER OF SPEEDS1
  • MAXIMUM FLUID TEMPERATURE °F230°F
  • MINIMUM FLUID TEMPERATURE °F35.6°
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • it does not indicate the size on any of the pumps, even in the diagrams. How do we know which size they are?

    Question Asked By: KEVIN, January 31, 2019

    Answer This Question

    Question Answered By:

    • anonymous

      Hello. Users should always connect the pump via flanges to whichever size the connection size is on the boiler. Thank you for your question.

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
