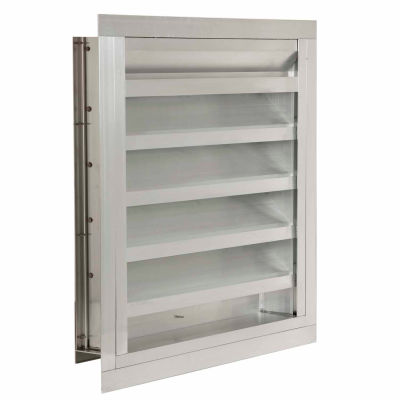

ACP, ACL-F-48x54, Combination Louver / Damper with Flange 48"W x 54"H
Combination Louver / Damper - The Model ACL offers superior resistance to rain and weather while also offering you the ability to completely close the opening off if needed. The channel frame is 4" deep with a 1-1/2" flange and drainable 45 degree fixed blades in the front with adjustable blades with seals for tight shutoff in the back all within one frame. The adjustable rear blades are operated with a thumb screw and come standard with birdscreen on the back.
MADE IN THE USA
Combination Louver / Damper - The Model ACL offers superior resistance to rain and weather while also offering you the ability to completely close the opening off if needed. The channel frame is 4" deep with a 1-1/2" flange and drainable 45 degree fixed blades in the front with adjustable blades with seals for tight shutoff in the back all within one frame. The adjustable rear blades are operated with a thumb screw and come standard with birdscreen on the back.
MADE IN THE USA
Product Specifications
- BRANDAir Conditioning Products
- DEPTH INCHES4
- INSIDE HEIGHT INCHES53-1/2
- OUTSIDE WIDTH INCHES50-1/2
- NOMINAL SIZE INCHES48 x 54
- OUTSIDE HEIGHT INCHES56-1/2
- ROUGH OPENING INCHES48W x 54H
- WEIGHT LBS79
- FINISHMill Finish
- NUMBER OF PANELS1
- TYPEIntake or Exhaust
- APPLICATIONCommercial / Industrial
- LIMITED WARRANTY YEARS1
- MANUFACTURER'S PART NUMBERACL-F 48x54
- INSIDE WIDTH INCHES47-1/2
- CONSTRUCTIONAluminum
- MAXIMUM VELOCITY FEET PER MINUTE1118 FPM - Water Penetration
- FREE AREA SQ. FT.8.07
- MOUNT TYPEVertical
