Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1/2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30", and 36" high containers (contact factory for other hold-down bar heights). Maximum Rotation is 135° and Dump Angle is 45°. The full load amperage is 7.8 amps. Hand Control features two buttons: up and down. This control enables the unit to stop automatically when either button is released. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavy-duty welded steel construction. Painted blue finish. 460 3-Phase.Note: Product has a tolerance of +/- ¼".

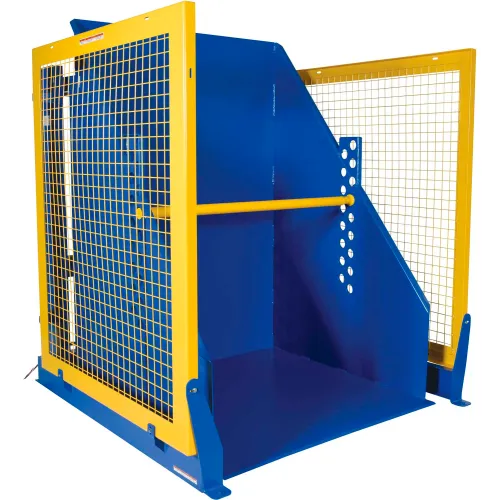

Electric Powered Hydraulic Lift Box & Container Dumper HBD-2-60
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$11,812.00
1
1
Ships in 60 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 68-1/2 in |
| Width | 69 in |
| Weight Capacity | 2000 lbs |
| Weight | 1837 lbs |
| Level Height | 77 in |
| Usable Chute | 50 x 52 x 50 in |
| Rotated Height | 149-1/2 in |
| Dump Height | 60 in |
Product Details
| Voltage | 460 V |
| Manufacturers Part Number | HBD-2-60 |
| Motor Horsepower | 2 HP |
| Brand | Vestil |
