Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.
Features:
- 5.5HP
- 1800 RPM
- 230/460V
- 112M Frame
- Multi-Mount Frame Design
- B3

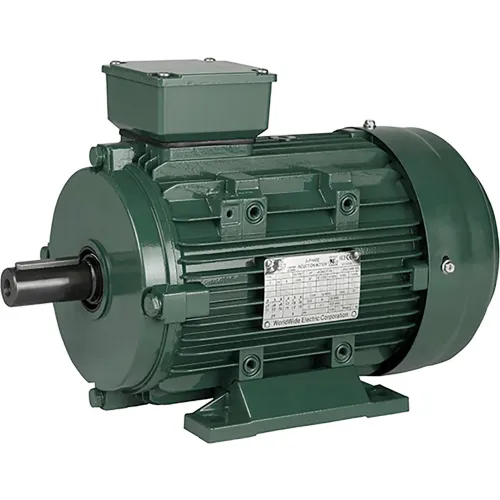

Worldwide Electric Corporation IEC Aluminum Frame Motor, B3, TEFC, 5-1/2HP, 1800 RPM, 230/460V
Write a Review
|
Questions & Answers (0)
Product Description
Worldwide Electric manufactures IEC Metric Motors, supplying globally compliant, high-efficiency motors to distributors and OEMs for automation, manufacturing, and international industrial applications. These IEC Metric Frame Motors are specifically designed for the needs of our customers utilizing equipment manufactured overseas. Totally Enclosed Fan Cooled (TEFC) Enclosure ¼ - 25 hp | 3600, 1800, and 1200 rpm 230/460 Volt, 60 Hz 190/380 Volt, 50 Hz IP55 protection IEC60034-1 & CE Certified WorldWide Electric's IEC motors operate at IE3 Efficiency at 50 Hz and are NEMA Premium Efficient at 60 Hz operation. Features include an aluminum frame, a multi-mounting frame design, a vacuum pressure impregnation system, and CE and IEC60034-1 certifications.
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.
Features:
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.
Features:
PRICE
$909.00
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 78.3 |
Product Details
| 60 Hertz kW | 3.7 kW |
| Horsepower | 5-1/2 HP |
| Frame | 112M |
| Hertz | 60 Hz |
| IP Code | 55 |
| Motor RPM 60 Hertz | 1,800 rpm |
| Enclosure Type | Totally Enclosed |
| Mounting Location | Multi-Mount Frame |
| Voltage | 230, 460 V |
| Full Load Efficiency | 88.6 |
| Phase | 3 |
| Nameplate RPM | 1,800 rpm |
| Full Load Amps | 6.73 |
| Frame Material | Aluminum |
| Manufacturers Part Number | IEC5.5-18-112 |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| RPM Range | 1,800 rpm |
| Brand | Worldwide Electric Corporation |
Compliance & Certifications
| CE Approved | Y |
