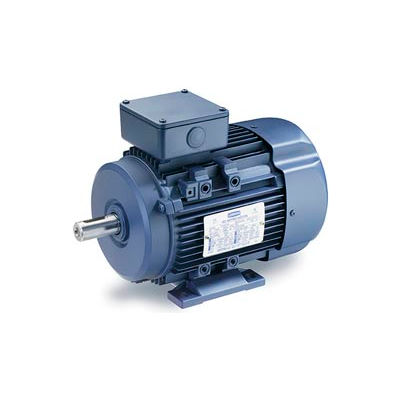

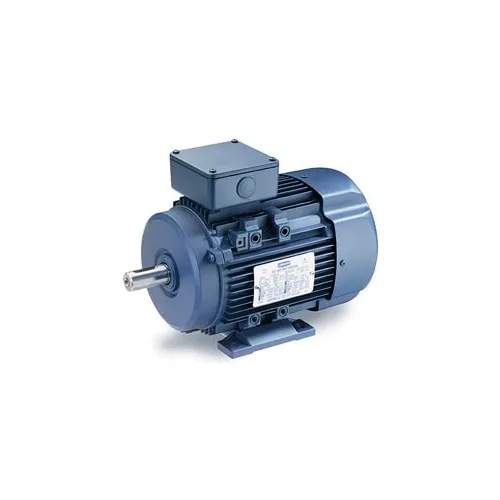

Leeson Motors Motor IEC Metric Motor-5.5HP, 575V, 3520RPM, IP55, B3, 1.15 SF, 87.5 Eff.

Leeson Motors Motor IEC Metric Motor-5.5HP, 575V, 3520RPM, IP55, B3, 1.15 SF, 87.5 Eff.

Item #: WBB230345

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,332.00 up to 21% OFF

Price: $1,051.00

$175.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Metric(IEC), B3 Footed Motor: 5.5HP, 3520 RPM, Weatherproof (IP55) Enclosure, 112M Frame, B3, 575V, 3PH, 60HZ, Name Plate Amps 5.4&, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 87.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation.

Meets North American performance standards and EPACT energy efficiency mandates. Features 1.15 service factor and B3 footed mounting. Typically used for replacement on machine tools, textile machinery and other equipment with metric dimensions but requiring the heavy-duty torque and performance of motors designed for use in North America.

Built to meet international standards and features IP55 weatherproof enclosures, 60/50 Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V), dual stamped nameplates, CE mark, and F3 conduit box location.

Weights & Dimensions

  • Weight 124

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 6306
  • Rotation CCW/CW °
  • Efficiency Type Standard
  • Nameplate RPM 3520 rpm
  • Ambient Temperature 40 °C
  • RPM Range 3001-3600 rpm
  • Voltage 575 V
  • Frame 112M
  • Service Factor 1.15
  • Horsepower 5 1/2 HP
  • Enclosure Type IP
  • Duty Continuous
  • Design Sq Cage Inductor Run
  • Phase 3
  • Enclosure IP55
  • UPC 69172003842
  • Full Load Efficiency 87.5
  • Brand Leeson
  • Full Load Amps 5.4 FLA
  • Motor RPM 60 Hertz 3520 rpm
  • Hertz 60 Hz
  • Thermal Protection No
  • Manufacturers Part Number 193382.6
  • Frame Material Cast Iron

Compliance & Certifications

  • CSA Certified Y
  • UL Y
