EMAX

Model # :WBB3178806

MPN #: ESS10V080V1

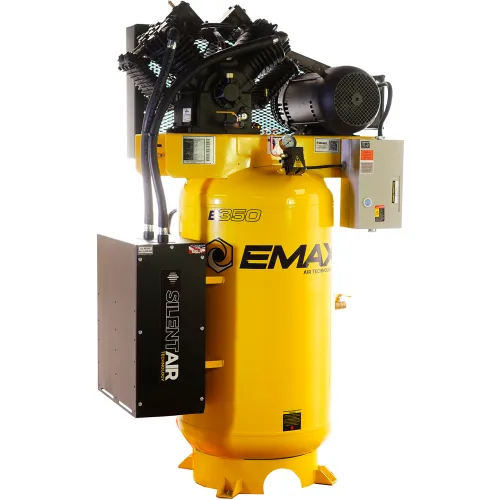

EMAX Industrial Two-Stage Silent Air Compressor, 80 Gal Cap., Vertical, 10 HP, 38 CFM, 1-Phase, 230V

Product Description
EMAX® 250 Silent Air Series 10HP 80 Gal. 2-stage V4, stationary single phase air compressor with isolator pads is designed for up to 50,000-hours of use with proper maintenance. This EMAX® air compressor is equipped with all-solid cast iron splash lubricated pump producing 38 CFM at 100 PSI. Unit features patented Silent Air system already installed. Silent Air system dissipates compressor intake noise by channeling intake air through a series of baffle plates. This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. Also features industrial grade 1.1 Service Factor 1740 RPM electric motor, magnetic starter, manual drain valve, 80 Gal. powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 G steel belt guard, 3/4 in. air outlet, all back by the best warranty around. EMAX® air compressors are built and tested in Ohio with reliability and durability in mind.

PRICE
$4,424.60

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length41 in
Width24-1/2 in
Height72 in
Weight914 lbs
Tank Size80 gal
Tank Outlet3/4

Product Details

Oil TypeOil Lubricated
Air DryerNo
Oil SystemSplash Lubricated
Pump DriveBelt Drive
Pump MaterialCast Iron
Tank Drain ValveManual
Max PSI175 psi
Start TypeMagnetic Starter
MaterialCast Iron
Phase1
Tank OrientationVertical
Oil Sight GlassYes
Manufacturers Part NumberESS10V080V1
Pump TypeTwo Stage
Low Oil ShutoffNo
BrandEMAX
TypeTwo Stage Air Compressor
CFM38 CFM
Horsepower10 HP
ColorYellow
After CoolerNo
Voltage230 V
Air FilterYes

Warranty

Warranty1 Year Standard, 5 Year Extended, Lifetime Extended Pump yr

Compliance & Certifications

CertificationsETL, ASME Certified
