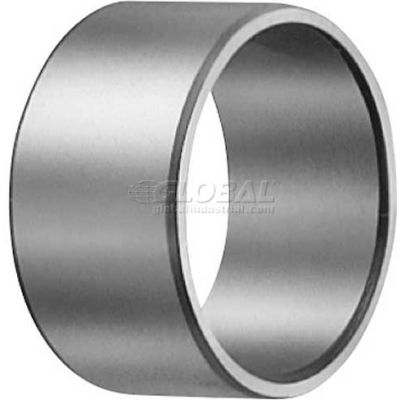

IKO Inner Ring for Shell Type Needle Roller Bearing INCH, 1-1/2 Bore, 1-3/4 OD, 38.48mm Width, Part# IRB2424
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
Weights & Dimensions
- Outside Dimension Tolerance +0 / -0.013 mm
- Bore (D) 38.100 (1-1/2) in
- Bore Tolerance +0 / -0.013
- Width (B) 38.48
- Width Tolerance +0 / -0.250
- Min Inner Ring Corner Radius 0.6 in
Product Details
- Outside Dimension (F) 44.450 (1-3/4)
- Description Inner Ring for Shell Type Needle Roller Bearing - INCH
- Shaft Shoulder (da) Min 43.3 mm
- Shaft Shoulder (da) Max 43.4 mm
- Brand IKO
- Manufacturers Part Number IRB2424
- Appropriate Outer Ring BA2824ZOH, BHA2824ZOH
