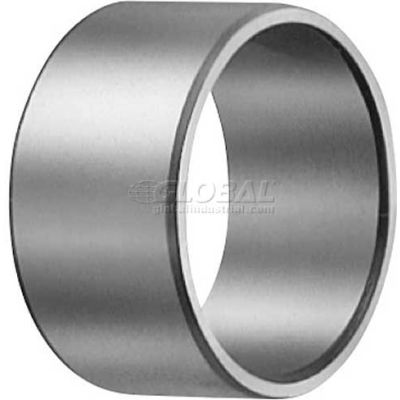

IKO Inner Ring for Shell Type Needle Roller Bearing INCH, 1-1/4 Bore, 1-1/2 OD, 32.13mm Width, Part# IRB2020
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
Weights & Dimensions
- Outside Dimension Tolerance +0 / -0.013 mm
- Bore (D) 31.750 (1-1/4) in
- Bore Tolerance +0 / -0.013
- Width (B) 32.13
- Width Tolerance +0 / -0.250
- Min Inner Ring Corner Radius 0.6 in
Product Details
- Outside Dimension (F) 38.100 (1-1/2)
- Description Inner Ring for Shell Type Needle Roller Bearing - INCH
- Shaft Shoulder (da) Min 37 mm
- Shaft Shoulder (da) Max 37.1 mm
- Brand IKO
- Manufacturers Part Number IRB2020
- Appropriate Outer Ring BA2420ZOH, YB2420
Customer Review
Product Q & A
There are no questions for this product.

IKO Inner Ring for Shell Type Needle Roller Bearing INCH, 1-1/4 Bore, 1-1/2 OD, 32.13mm Width
$14.0
