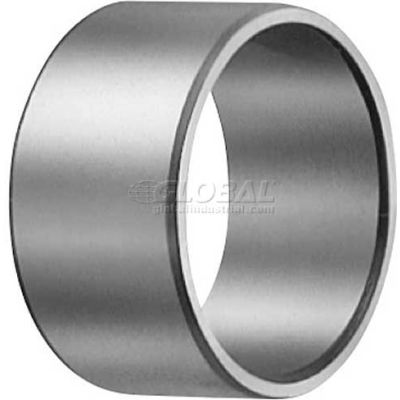

IKO Inner Ring for Shell Type Needle Roller Bearing METRIC, 7mm Bore, 10mm OD, 10.5mm Width, Part# IRT710
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
Weights & Dimensions
- Outside Dimension Tolerance -0.005 / -0.011 mm
- Bore (D) 7 in
- Bore Tolerance +0 / -0.008
- Width (B) 10.5
- Width Tolerance +0 / -0.120
- Min Inner Ring Corner Radius 0.3 in
Product Details
- Outside Dimension (F) 10 mm
- Description Inner Ring for Shell Type Needle Roller Bearing - METRIC
- Shaft Shoulder (da) Min 9 mm
- Shaft Shoulder (da) Max 9.7 mm
- Brand IKO
- Manufacturers Part Number IRT710
- Appropriate Outer Ring TA1010Z, TLA1010Z
Customer Review
Product Q & A
There are no questions for this product.

IKO Inner Ring for Shell Type Needle Roller Bearing METRIC, 7mm Bore, 10mm OD, 10.5mm Width
$3.93
