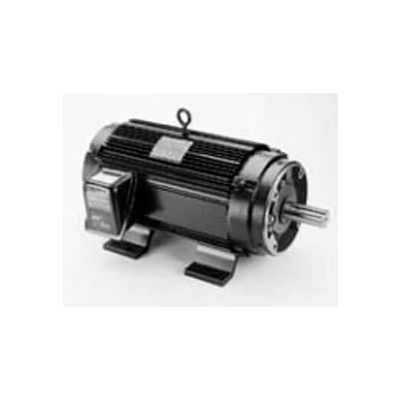

Marathon Motors Inverter Duty Motor, Y283, 143THTR15535, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y283, 143THTR15535, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Item #: WBB869288

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,317.00

$219.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

US Motors Inverter Duty, 5 HP, 3-Phase, 1760 RPM Motor, H5V2BC

US Motors Inverter Duty, 5 HP, 3-Phase, 1760 RPM Motor, H5V2BC

Marathon Motors Inverter Duty Motor, Y283, 143THTR15535, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

The Max+ incorporates low rotor inertia for fast starts, stops, ad reversals. Coupled with a encoder make this useful in applications traditionally served only by servo systems. The Max+ is also suitable for all applications where up to a 1000:1 Constant Torque speed range.

Product Details

  • 60 Hertz kW 0.75 kW
  • Mounting Location C-Face Removable Base
  • Bearing Drive End Ball
  • Assembly Required F1 Only
  • RPM 1800 rpm
  • Ambient Temperature 40 °C
  • KVA Code P
  • IP Code 43
  • Insulation Class H
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 143TC
  • Inverter Speed Range Constant 1000:1
  • Horsepower 1 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • 60 Hertz Full Load Amps 3/1.5 FLA
  • Duty Continuous
  • Enclosure TENV
  • Phase 3
  • Orientation Horizontal
  • Starting Type Inverter Only
  • Brand Marathon Motors
  • Motor RPM 60 Hertz 1800 rpm
  • Manufacturers Part Number Y283
  • Catalog Number Y283
  • 60 Hertz FLE 84.00 Percent FLE
  • 60 Hertz SF 1 V

Compliance & Certifications

  • NEMA Design A
  • CSA Certified Y
  • UL Recognized Construction
  • CE Approved Y

Weights & Dimensions

  • Drive End Bearing Size 6205
  • Opposite End Bearing Size Ball
  • Weight 42 lbs
