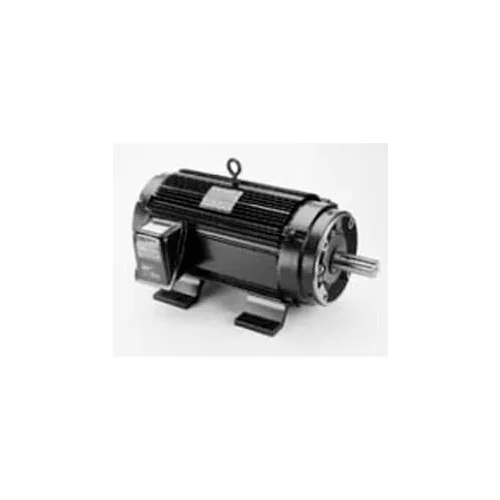

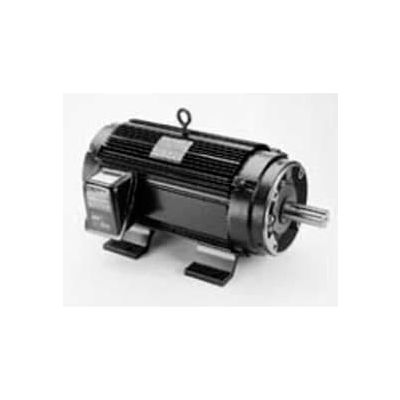

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Item #: WBB869287

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $663.00

$110.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Inverter Duty Motor, Y360, 56H17T2017,  1/2HP, 230/460V, 1800RPM, 3PH, 56C, TENV

Marathon Motors Inverter Duty Motor, Y360, 56H17T2017, 1/2HP, 230/460V, 1800RPM, 3PH, 56C, TENV

Marathon Motors Inverter Duty Motor, Y378, 56H17F2022, 1HP, 230/460V, 1800RPM, 3PH, 56C, TEFC

Marathon Motors Inverter Duty Motor, Y378, 56H17F2022, 1HP, 230/460V, 1800RPM, 3PH, 56C, TEFC

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Designed for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.

Weights & Dimensions

  • Opposite End Bearing Size Ball
  • Weight 42 lbs
  • Drive End Bearing Size 6205

Product Details

  • 60 Hertz kW 0.75 kW
  • Mounting Location C-Face Rigid
  • Bearing Drive End Ball
  • Assembly Required F1 Only
  • RPM 1800 rpm
  • Ambient Temperature 40 °C
  • KVA Code P
  • IP Code 43
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 143TC
  • Inverter Speed Range Constant 1000:1
  • Horsepower 3 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • 60 Hertz Full Load Amps 3/1.5 FLA
  • Duty Continuous
  • Enclosure TENV
  • Phase 3
  • Orientation Horizontal
  • Starting Type Inverter Only
  • Brand Marathon Motors
  • Motor RPM 60 Hertz 1800 rpm
  • Thermal Protection Thermostats (Normally Closed)
  • Manufacturers Part Number Y541
  • Catalog Number Y536
  • 60 Hertz FLE 84.00 Percent FLE
  • 60 Hertz SF 1 V

Compliance & Certifications

  • CE Approved Y
  • NEMA Design A
  • CSA Certified Y
  • UL Recognized Construction and Protector
