Designed for industrial applications with Vector Drives where up to a 2000:1 constant torque speed range is required. Used in dirty, dusty or caustic environments where cast iron construction is required, and installed in hazardous environments.

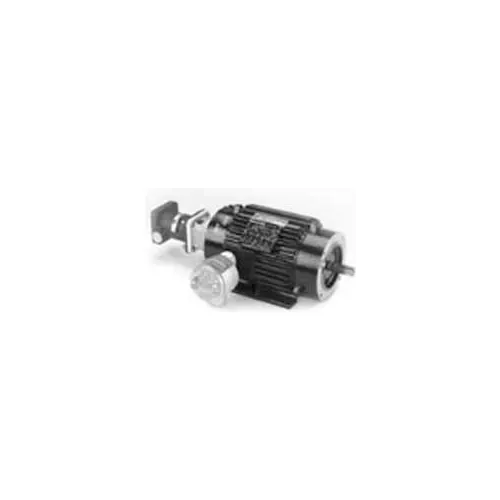

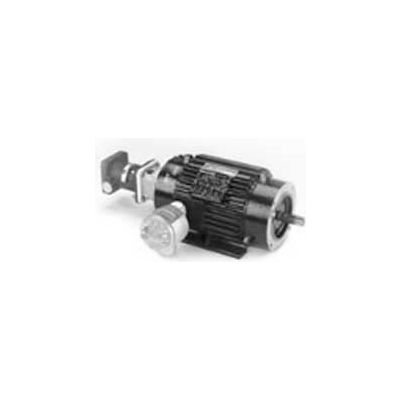

Marathon Motors Inverter Duty Motor, Y980, 182THES8048, 3HP, 230/460V, 1800RPM, 3PH, 182TC, EPNV
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$7,599.00
1
1
Free Shipping Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 117 lbs |
| Opposite End Bearing Size | Ball |
| Drive End Bearing Size | 6207 |
Product Details
| 60 Hertz kW | 2.24 kW |
| Catalog Number | Y980 |
| 60 Hertz Full Load Amps | 8.2/4.1 FLA |
| KVA Code | L |
| IP Code | 54 |
| Motor RPM 60 Hertz | 1800 rpm |
| Mounting Location | C-Face Rigid |
| Phase | 3 |
| 60 Hertz FLE | 84.00 Percent FLE |
| Manufacturers Part Number | Y980 |
| Enclosure | EPNV |
| Bearing Drive End | Ball |
| Brand | Marathon Motors |
| 60 Hertz SF | 1 V |
| RPM | 1800 rpm |
| Hazardous Location | EXP PROOF CL I GR C&D CL II GR F&G T3C |
| Insulation Class | F |
| Horsepower | 3 HP |
| Orientation | Horizontal |
| Frame | 182TC |
| Starting Type | Inverter Only |
| Thermal Protection | Thermostats (Normally Closed) |
| Inverter Speed Range | Constant 2000:1 |
| Enclosure Type | Explosion Proof |
| Voltage | 230/460 V |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CE Approved | N |
| NEMA Design | A |
| UL | UL Listed |
