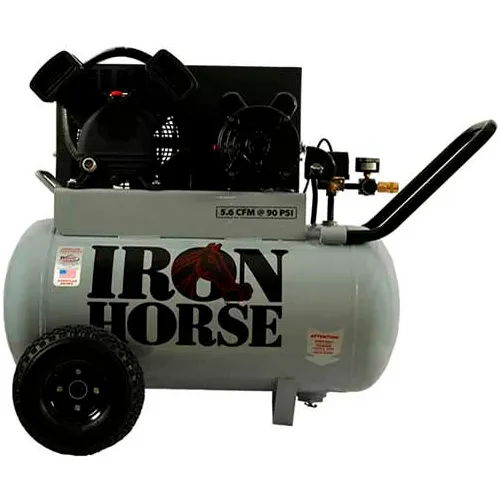

Iron Horse IHP5120H1-US, 5 HP,Portable Compressor,20 Gallon,Horizontal,150 PSI,5.6 CFM,1-Phase 115V
This Rugged "Space Saving Horizontal Portable" Compressor Comes With A Cast Iron Cylinder with A 20 Gallon Asme Registered Air Tank Providing Maximum Air Capacity When Needed..This Units Is Oil Lubricated For Professional Use And Longer Life And Is Powered By A Thermally protected 5.0 Peak Hp, 115 Volt Electric Motor .
This Rugged "Space Saving Horizontal Portable" Compressor Comes With A Cast Iron Cylinder with A 20 Gallon Asme Registered Air Tank Providing Maximum Air Capacity When Needed..This Units Is Oil Lubricated For Professional Use And Longer Life And Is Powered By A Thermally protected 5.0 Peak Hp, 115 Volt Electric Motor .
Weights & Dimensions
- Weight 120 lbs
- Tank Size 20 gal
- Tank Outlet 1/4"
- Width 15 in
- Length 35 in
- Height 28 in
Product Details
- Tank Drain Valve Manual
- Pump Type Single-Stage
- Air Dryer No
- Air Filter No
- CFM @ 90 PSI 5.6 CFM
- Type Portable
- After Cooler No
- Tank Orientation Horizontal
- Material Cast Iron
- Style Horizontal
- Savings Everyday Low Price
- Oil System Splash Lubricated
- CFM 5.6 CFM
- Oil Sight Glass Yes
- Voltage 115 V
- Pump Material Cast Iron
- Description Single Stage Electric Compressor
- Low Oil Shutoff No
- Oil Type Oil Lubricated
- Horsepower 5 HP
- Max PSI 150 psi
- Pressure Dew Point No
- Phase 1
- Pre Filter No
- Start Type Electric
- Brand Iron Horse
- Pump Drive Belt Drive
- Wheels (2) Mold-On Rubber
- Manufacturers Part Number IHP5120H1-US
- Color Family Grey/Black
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications CSA/UL/ASME
