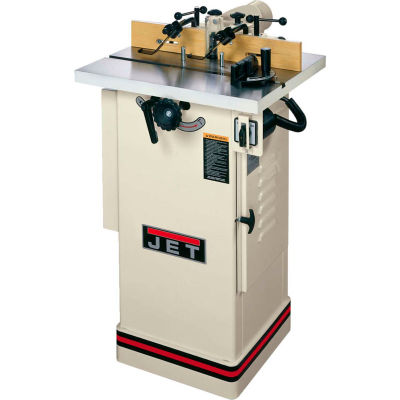

JET 708320 Model JWS-22CS 1-1/2HP 1-Phase 115/230V 1/2" & 3/4" Spindle Shaper

JET 708320 Model JWS-22CS 1-1/2HP 1-Phase 115/230V 1/2" & 3/4" Spindle Shaper

Item #: WBB57782

Not Yet Rated

Free Shipping

$1,720.00 up to 19% OFF

Price: $1,399.99

$233.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

If you're looking for a space-saving shaper for your shop, the new JET JWS-22CS Shaper is what you need. This compact powerhouse features a 7000 and 9000 RPM reversing 1-1/2HP motor. The large 22-3/8 x 18-1/8" precision ground cast iron table provides a large, durable, work area. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4" dust port. If you feel you just don't have the space, the nominal 23" x 25" footprint of this workhorse is sure to change your mind. Put the new JET JWS-22CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better.

Features:

  • Starting Pins for irregular shaping
  • Forward/reverse switch for left and right hand operation
  • Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
  • Independent left and right fences feature micro-adjustment and have zero-clearance capability
  • Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Positive detent spindle lock allows safer, easy cutter set-up
  • 4 dust port connects to your collection system to keep your workplace dust and debris-free
  • 1/2 and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits

  • FENCE SIZE INCHES (L X H) 10 x 3-1/8
  • PREWIRED VOLTAGE 115
  • VOLTAGE 115/230
  • MOTOR VOLTAGE 115/230
  • MOTOR PHASE 1
  • MOTOR HORSEPOWER 1-1/2
  • DUST PORT OUTSIDE DIAMETER INCHES (FRONT) 4
  • TABLE SIZE INCHES (L X W) 22-1/4 X 18-1/8
  • MAXIMUM SPINDLE DIAMETER INCHES 1/2, 3/4
  • TABLE HEIGHT FROM FLOOR INCHES 33-1/2
  • TABLE T-SLOT INCHES 3/4 X 3/8
  • SPINDLE SPEED (RPM) 7000/9000
  • TABLE INSERT OPENING DIAMETER INCHES 1-5/8, 3-1/4
  • TABLE OPENING DIAMETER INCHES 5-1/4
  • SPINDLE SIZE UNDER NUT INCHES 1/2, 3/4
  • SPINDLE DIAMETER INCHES 1/2, 3/4
  • AMPS 12/6
  • BRAND JET
  • MANUFACTURERS PART NUMBER 708320
  • TYPE Shaper
  • SPINDLE TRAVEL INCHES 1-7/16
  • MODEL JWS-22CS
  • MANUFACTURERS LIMITED WARRANTY YEARS 5
