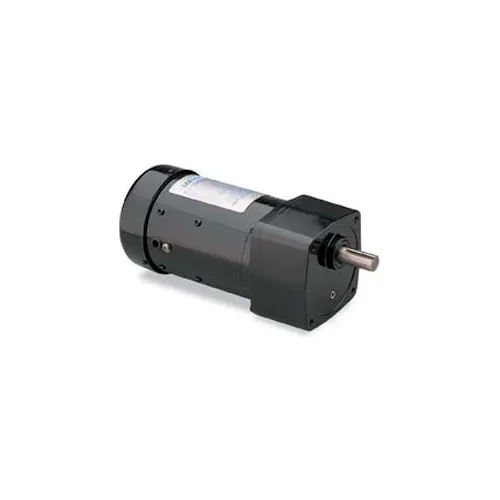

Leeson 096005.00, 1/6 HP, 34 RPM, 115/230V, 1-Phase, TEFC, PE350, 50:1 Ratio, 250 In-Lbs
Design Specifications:
Design Specifications:
- Sub-FHP AC gearmotors.
- Totally enclosed for continuous duty, general purpose applications.
- All rated for 60/50 Hz operation except hi-torque single-phase which are 60 Hz only.
- Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support.
- Precision machined gearing, hardened for maximum load capability.
- All gearing designed and rated to AGMA
- Class 9 standards and to withstand momentary shock overload of 200%.
- Oversized output bearings for greater overhung load capacity and longer life.
- High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit.
- Single lip, spring loaded, heavy-duty industrial oil seals help keep lubricant in and dirt out.
- Gears and bearings are splash lubricated with permanent, heavy-duty gear oil.
Weights & Dimensions
- Overhung Load 330 lbs
- Weight 29 lbs
Product Details
- Rotation Reversible °
- Gearmotor RPM 34 rpm
- Type & Frame Style PE353-42
- Ambient Temperature 40 °C
- Gearhead/Shaft Type Parallel
- Insulation Class F
- Voltage 115/230 V
- Service Factor 1
- Horsepower Range 1/7 to 1/5 HP
- Enclosure Type Totally Enclosed
- Horsepower 1/6 HP
- Ratio To 1 50
- Duty Continuous
- Phase 1
- Brand Leeson
- Output Torque 250 lb-in
- Series PE350
- Full Load Amps 2.9/1.45 FLA
- Hertz 60 Hz
- Manufacturers Part Number 096005.00
- Frame Material Steel
Compliance & Certifications
- CSA Certified Yes
- UL Yes
