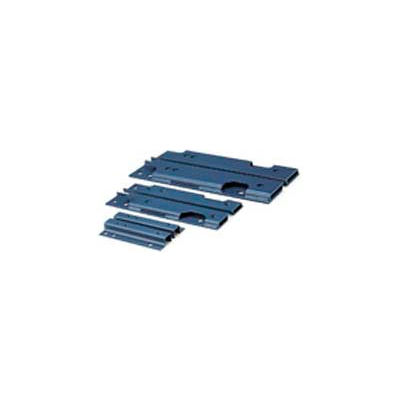

Leeson Motors Transition Base 360T To 400U Base 4036/4036 Converta Mount

Leeson Motors Transition Base 360T To 400U Base 4036/4036 Converta Mount

Item #: WBB587798

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$484.00 up to 37% OFF

Price: $306.95

Save $15.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Transition bases compensate for the difference in mounting dimensions and shaft height of a rigid base NEMA T frame to the next higher NEMA U frame. This makes it possible, for example, to replace a 10 HP NEMA 254U frame motor with a 10 HP NEMA 215T frame motor without modifying the basic installation. Made of the same high-quality materials and construction as the adjustable motor bases above. They are for horizontal mountings, shimming may be needed for direct coupled loads. Thread size listed is for mounting transition base to the "T" frame motor. Dimensions listed are for one piecetwo are supplied, one for each side of the motor's foot.

  • APPLICATIONS Dependant Upon Motor Application
  • LEESON CATALOG NUMBER 175098.00
  • BRAND Leeson
  • FRAME --
  • THREAD 5/8-11 Thread
  • CONVERTS 364T/365T to 404U/405U
  • TYPE Convera Mount
  • LENGTH INCHES 18.63
  • WIDTH INCHES 4.25
  • HEIGHT INCHES 1
