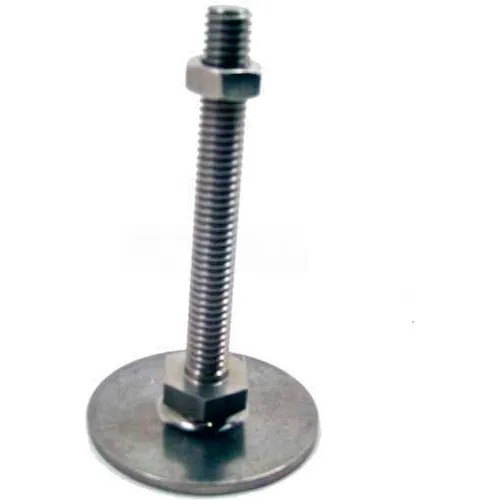

Leveling Foot, 1/2-13 x 5.91" Stud, 3.15" Base Dia, 6.34"H, 2250 Lbs. Cap, 304 SS
Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
- BASE DIAMETER 3.15"
- BRAND J.W. Winco
- CONSTRUCTION 304 Series Stainless Steel
- DESCRIPTION Leveling Foot
- MANUFACTURERS PART NUMBER 41-80-1/2X13-150-D0-SK
- TYPE Threaded
- COUNTRY OF ORIGIN Import
- STUD LENGTH 5.91"
- LOAD CAPACITY (LBS.) 2250 Lbs.
- THREAD 1/2-13
- LOAD CAPACITY RANGE (LBS.) 1000 - 2500 Lbs.
- UNIT OF MEASUREMENT Inch (Imperial)
- STUD Pivots Up To 6°
- THREADED STUD & HEX NUT 304 Series Stainless Steel
- HEIGHT 6.34"
Customer Review
Product Q & A
There are no questions for this product.
Leveling Foot, 1/2-13 x 5.91" Stud, 3.15" Base Dia, 6.34"H, 2250 Lbs. Cap, 304 SS
$14.0
