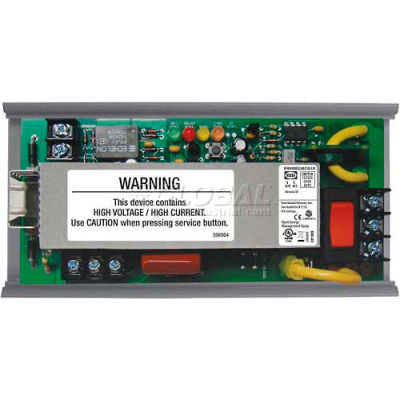

RIB® LonWorks Panel Relay RIBMNWX2402SB-LN, 2.75", 20A, SPST, 24VAC/DC/208V, Current Sensor
RIB® BACnet, LonWorks, and Ethernet Network Compatible Devices can be hard wired and used instead of more expensive multi-output controllers when a few more control points are needed, and large controllers are too much for the job. They can also be used when control points are widely spread throughout the job site. These devices have been prepackaged to save the installer the time, trouble, and expense of buying separate components and assembling them on the job. Functional Devices also offers WiFi, Zigbee, AIC, and EnOcean WIRELESS Network Compatible Devices that can act singly as a (LCS) load control switch or as part of a larger network.
RIB® BACnet, LonWorks, and Ethernet Network Compatible Devices can be hard wired and used instead of more expensive multi-output controllers when a few more control points are needed, and large controllers are too much for the job. They can also be used when control points are widely spread throughout the job site. These devices have been prepackaged to save the installer the time, trouble, and expense of buying separate components and assembling them on the job. Functional Devices also offers WiFi, Zigbee, AIC, and EnOcean WIRELESS Network Compatible Devices that can act singly as a (LCS) load control switch or as part of a larger network.
Weights & Dimensions
- Width 2.75 in
- Length 5.5 in
- Height 1.75 in
- Wire Size 16 in
Product Details
- Operating Temperature -30° To 140°F
- Humidity Range 5 To 95 Percent (Noncondensing)
- Voltage 24VAC/DC 208-277VAC V
- Expected Relay Life 10 Million Cycles Minimum Mechanical
- Description LonWorks Panel Relay
- Number of Relays 1
- Amperage 20 A
- Includes Current Sensor, HOA
- Wire Rating 600V
- Brand RIB
- Manufacturers Part Number RIBMNWX2402SB-LN
- Contact Type SPST
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications UL Listed
Customer Review
Product Q & A
There are no questions for this product.

RIB® LonWorks Panel Relay RIBMNWX2402SB-LN, 2.75", 20A, SPST, 24VAC/DC/208V, Current Sensor
$158.95
