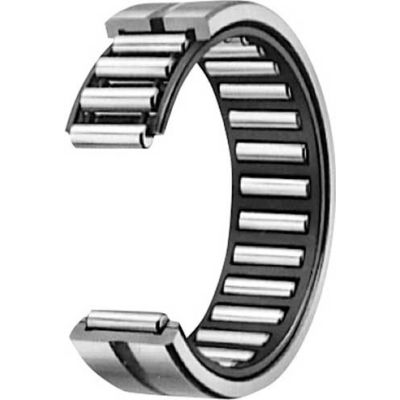

IKO Machined Type Needle Roller Bearing METRIC RNA49/22, 28mm Bore, 39mm OD
IKO Machined Type Needle Roller Bearing consists of solid outer ring, rollers and retainer, without inner ring. They are with low sectional height, large load ratings and rigidity, and most of them come with seals. Prepacked lubricant is not provided except double sealed bearings (suffix UU). Proper lubricant must be applied when they are used. Machined Type needle roller bearings are generally used with shafts without inner rings. 0.2µmRa or less shaft surface finish and HRC 58 to 64 shaft hardness are recommended. When these requirements are not possible, use of IKO Inner Rings are recommended.
IKO Machined Type Needle Roller Bearing consists of solid outer ring, rollers and retainer, without inner ring. They are with low sectional height, large load ratings and rigidity, and most of them come with seals. Prepacked lubricant is not provided except double sealed bearings (suffix UU). Proper lubricant must be applied when they are used. Machined Type needle roller bearings are generally used with shafts without inner rings. 0.2µmRa or less shaft surface finish and HRC 58 to 64 shaft hardness are recommended. When these requirements are not possible, use of IKO Inner Rings are recommended.
Weights & Dimensions
- Tolerance ISO Class 0
- Outside Dimension Tolerance +0 / -0.011 mm
- Bore Tolerance +0.033 / +0.020
- Max Housing Shoulder Diameter 37
- Outside Dimension 39 in
- Width 17 mm
- Width (C) Tolerance +0 / -0.120
- Static Load 28900 N
- Bore (Fw) Mm/Inch 28 in
- Outer Ring Corner Radius Min 0.3
Product Details
- Oil Hole & Groove Yes
- Dynamic Load Rating (N) 21400
- Oil Max Speed 14000 rpm
- Appropriate Inner Ring LRT222817
- Brand IKO
- Series RNA49
- Manufacturers Part Number RNA49/22
- Grease Max Speed 8400 rpm
