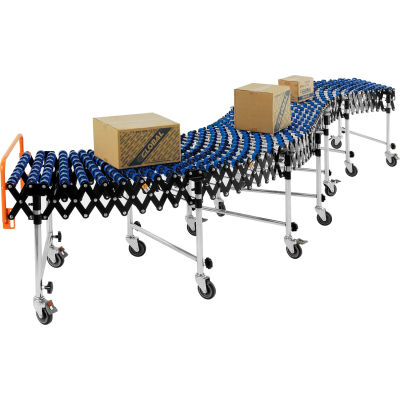

Portable Flexible & Expandable 6'2" to 24'8" Conveyor - Nylon Skate Wheels - 24"W

Portable Flexible & Expandable 6'2" to 24'8" Conveyor - Nylon Skate Wheels - 24"W

Item #: WB168111

(2)

Ships same day. ? Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • Nylon
  • Steel

Nylon

Price: $1,499.00

Quantity Discount

  • Buy 1-2 $1,499.00 ea.
  • Buy 3+ $1,424.00 ea.

Quantity

Popular item in this category

Customers Also Viewed

BEST VALUE PORTABLE FLEXIBLE & EXPANDABLE CONVEYOR

Retracts to 6'2" to Save Space!

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily.

Click here to see our full selection of Portable Conveyors, Flexible Conveyor and Expandable Conveyors.

Product Specifications

  • WIDTH INCHES24
  • CAPACITY LBS175 lbs. per ft.
  • ADJUSTABLE LENGTH6'2" to 24'8"
  • ASSEMBLYUnassembled
  • AXLE CENTER INCHES4
  • BRANDGlobal Industrial™
  • CONSTRUCTIONSteel
  • INSIDE RADIUS INCHES27
  • LEG SETS PER UNIT7
  • LIMITED WARRANTY1 Year
  • MANUFACTURERS PART NUMBER168111
  • MAXIMUM LEG HEIGHT INCHES40-1/2
  • MINIMUM LEG HEIGHT INCHES31-3/4
  • MODEL168111
  • SKATE WHEEL OR ROLLER CONSTRUCTIONNylon
  • SKATE WHEELS PER AXLE8
  • TYPESkate Wheel
  • WEIGHT LBS474
Customer Review

5.0

  • 5 Star

    2
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Constance

    Date: May 29, 2018

    Time Saver
    Your review:
    Our efficiency level rose with the addition of this conveyor. Floor loaded trailers are quickly unloaded saving time and money.
    Pros:
    Faster unload Less personnel involved Less chance of injury
    Cons:
    Maximum stretch requires an additional person in the middle when lighter boxes stray.
  • Reviewer: DIANA

    Date: March 12, 2018

    great time saver
    Your review:
    We use it for totes, and line up the orders for the drivers. It is much easier for them to load the orders onto the truck from height we designate. It easily moves around if we need more or less space.
    Pros:
    Helps in safety and helps prevent workman comp claims for back injury.
    Cons:
    It is not that easy to put toegther
Product Q & A

There are 1 questions and 1 answer for this product.

  • Hi, we just ordered one of these and was wondering if there was side supports to keep boxes on the conveyors? We have to make a sharp turn and have noticed parts starting to work off the edge.

    Question Asked By: Michael, June 24, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, June 24, 2015

      "There would be no side supports available for this particular model because the side supports would have to bend and move with the configuration of the conveyor as this is a flexible conveyor. I'm very sorry about that. "
