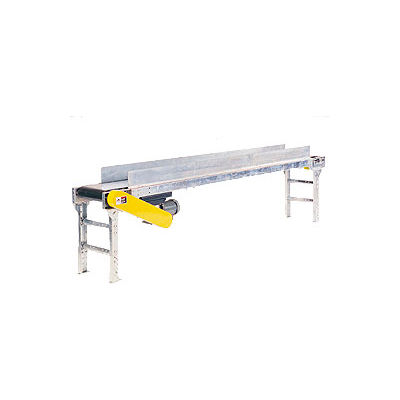

Omni Metalcraft Powered 20"W x 20'L Belt Conveyor with 6"H Side Rails BHSE20-0-22-F60-0-0.5-4-SIDES

Omni Metalcraft Powered 20"W x 20'L Belt Conveyor with 6"H Side Rails BHSE20-0-22-F60-0-0.5-4-SIDES

Item #: WB158904

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 10
  • 20
  • 30
  • 40
  • 50

20

  • SELECT
  • 20
  • 24

20

Frequently Purchased Together

  • Variable Speed Upgrade for 1/2 Horsepower Omni Metalcraft Belt Conveyor

    $264.95

  • Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

    $1,014.00

Price: $3,577.00

$596.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,577.00 or save 3% on purchase.

Quantity

Popular item in this category

Customers Also Viewed

Omni Metalcraft POWER BELT CONVEYOR WITH 6" HIGH SIDE RAILS

Shipped complete, including controls.

A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. Includes 6"H Side Rails to help prevent cargo from falling during movement. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include: crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts, 2-1/2" dia. snub roller and 1.9" dia. return rollers, and pre-lubricated, self-aligning ball bearings. Reversible conveyors and replacement parts are available; call for information.

Optional Variable Speed Motor (12-60 FPM) upgrade is available to allow greater flexibility.

Optional Horsepower upgrade is available to increase Capacity (see chart below).

Load Capacity Lbs. Uniformly Distributed Over Length
  Horsepower     12"W Belt     20" - 24"W Belt
  1/2 (Standard) 250 160
  3/4 (Optional) 500 390
  1 (Optional) 740 640
  1-1/2 (Optional) 1230 1090
  2 (Optional) 1680 1580


Product Specifications

  • LENGTH FEET22
  • CAPACITY LBS160
  • ASSEMBLYUnassembled
  • BELT LENGTH FEET20
  • BELT WIDTH INCHES20
  • BRANDOmni Metalcraft
  • CONSTRUCTIONSteel Frame and PVC Belt
  • CONVEYOR SPEED60 FPM
  • DRIVE PULLEY DIAMETER INCHES4
  • HORSE POWER1/2
  • MANUFACTURERS PART NUMBERBHSE20-0-22-F60-0-0.5-4-SIDES
  • MAXIMUM LEG HEIGHT INCHES38
  • MINIMUM LEG HEIGHT INCHES34
  • OVERALL BED WIDTH INCHES25
  • TYPEWith 6"H Side Rails
  • VOLTAGE115/230
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • Which end of the conveyor is the motor on, the in feed or out feed?

    Question Asked By: Frank, July 19, 2017

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Frank, The motor is at the in drive. Thank you for your interest in our product.

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
