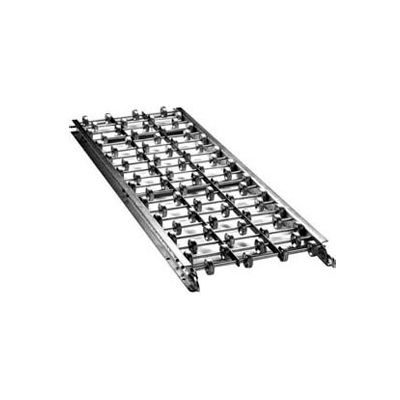

Ashland 5' Straight Galvanized Steel Skatewheel Conveyor 33970 - 15" OAW - 10 WPF

Ashland 5' Straight Galvanized Steel Skatewheel Conveyor 33970 - 15" OAW - 10 WPF

Item #: WBB2185078

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 2-1/2" x 1" x 1/8" Aluminum
  • 2-1/2" x 1" x 12 Ga. Galvanized Steel

2-1/2" x 1" x 12 Ga. Galvanized Steel

Price: $119.95

Save $6.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Ashland 5' Straight Galvanized Steel Skatewheel Conveyor 33970 - 15" OAW - 10 WPF

Gravity skatewheel conveyor will convey lightweight loads that have firm flat conveying surfaces such as cartons, totes, cases etc. Benefits and features of skatewheel conveyor include;

  • It is lighter weight than roller conveyor making it ideal for quick temporary set-ups.
  • Includes quick connecting hook and rod couplers.
  • Skatewheels roll freely making them better suited for conveying lighter packages.
  • Aluminum conveyors are lighter in weight for easier handling.
  • Galvanized steel conveyors are heavier and more durable.
  • 1-15/16"Dia., Pre-lubricated zinc plated steel wheels
Construction:

  • 1" x 2-1/2" x 1" frames in 12 ga galvanized steel.
  • Axles are 1/4" diameter steel and are on 3" centers; one end is threaded with locking nut.
  • WPF or Wheel per foot are noted per line item.
  • Hook and rod couplers are zinc plated.
  • Skatewheel sections are measured by the OAW or Overall Width.
Capacities:

  • Wheels are 1-15/16" diameter with 1/4" bore and have a 75 Lb capacity.
  • Galvanized steel frame capacities (evenly distributed non-impact load):
    • 36 lbs. per foot with supports on 10' centers.
    • 260 lbs. per foot with supports on 5' centers.


Product Specifications

  • LENGTH INCHES60
  • LENGTH FEET5
  • WIDTH INCHES15
  • HEIGHT INCHES2-27/32
  • CAPACITY260 Lbs./Ft. on 5' Support Centers
  • CAPACITY LBS75 Lbs. per Wheel
  • COLOR FINISHGalvanized
  • ASSEMBLYAssembled
  • AXLE CENTER INCHES3
  • BETWEEN FRAME WIDTH INCHES13
  • BORE DIAMETER INCHES1/4
  • BRANDAshland Conveyor Products
  • COMPATIBLE WITH CONVEYOR FRAME SIZEAshland 2-1/2" x 1" Skatewheel & Roller Conveyor
  • CONSTRUCTION2-1/2" x 1" x 12 Ga. Galvanized Steel
  • CONVEYOR SECTIONStraight
  • FRAME TYPE12 Ga. Galvanized Steel
  • INSIDE RADIUS INCHES--
  • LIMITED WARRANTY1 Year
  • MANUFACTURERS PART NUMBER33970
  • OUTSIDE RADIUS INCHES--
  • PACKAGE QUANTITY1
  • REFERENCE #15X10X05G
  • SKATE WHEEL DIAMETER INCHES1-15/16
  • STYLESkate Wheel Conveyor
  • TYPE5 ft. Straight
  • WEIGHT LBS35
  • WHEELS PER FOOT10
