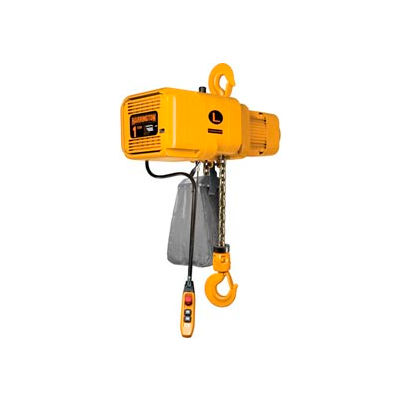

NER Dual Speed Electric Chain Hoist - 1/8 Ton, 10' Lift, 55/9 ft/min, 460V

NER Dual Speed Electric Chain Hoist - 1/8 Ton, 10' Lift, 55/9 ft/min, 460V

Item #: WBB440343

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,744.76 up to 19% OFF

Price: $3,031.00

$505.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,031.00 or save 5% on purchase.

Quantity

Customers Also Viewed

The NER dual speed series of electric chain hoists from Harrington incorporate an under the cover variable frequency drive giving the hoist amazing load control and field adjustable two speeds with up to a 12:1 speed ratio. Features include "The Guardian": Smart Brake Technology, a current driven electromagnetic brake that does not release unless the motor is energized, Grade 80 nickel plated load chain, variable frequency drive allowing speed adjustability and integral count hour functionality which records and displays the number of lowering starts and hoist on time, 5 pocket load sheave to reduce vibration and extend chain life, cooler motor and brake attributed to the fan cooled motor, low profile upper and lower limit switches and plug in pendant and power supply cords. Hoist are UL listed to UL 1340, built environmentally friendly meeting RoHS requirements and exceed ASME H4 Duty Rating. All Hoist are provided with test certificate verifying hoist has been factory load tested to 125% of rated capacity, in accordance to ASME B30.16.

Product Specifications

  • CAPACITY LBS250
  • COLOR FINISHYellow
  • ASSEMBLYUnassembled
  • BRANDHarrington
  • CONSTRUCTIONDie-Cast Aluminum Body
  • CONTROL CORD LENGTH FEET6
  • HEAD ROOM INCHES13-13/16
  • HORSEPOWER3/4
  • LIFT FEET10
  • LIFT SPEED FEET PER MINUTE55/9
  • MANUFACTURERS PART NUMBERNER001HD-10
  • OPERATING CONDITIONS-4°F to 104°F
  • SERIESNER
  • TYPESingle Chain
  • VOLTAGE460
  • WEIGHT LBS60
  • PHASE3
  • HERTZ60
