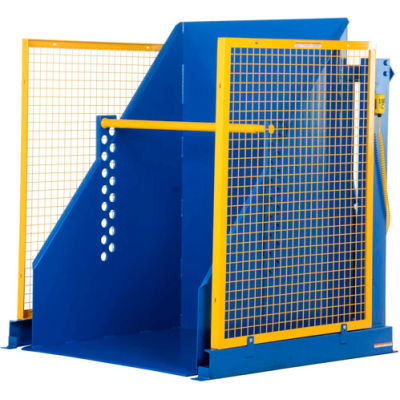

Electric Powered Hydraulic Lift Box & Container Dumper HBD-2-60

Electric Powered Hydraulic Lift Box & Container Dumper HBD-2-60

Item #: WBB54055

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 2000
  • 4000
  • 6000

2000

Price: $5,300.00

$883.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $5,300.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Electric Powered Hydraulic Lift Box & Container Dumper HBD-2-60

Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1/2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30", and 36" high containers (contact factory for other hold-down bar heights). Maximum Rotation is 135° and Dump Angle is 45°. The full load amperage is 7.8 amps. Hand Control features two buttons: up and down. This control enables the unit to stop automatically when either button is released. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavy-duty welded steel construction. Painted blue finish. 460 3-Phase.

Product Specifications

  • LENGTH INCHES68-1/2
  • WIDTH INCHES69
  • CAPACITY LBS2000
  • BRANDGlobal Approved
  • DUMP HEIGHT INCHES60
  • LEVEL HEIGHT INCHES77
  • MANUFACTURERS PART NUMBERHBD-2-60
  • MOTOR HP2
  • ROTATED HEIGHT INCHES148
  • USABLE CHUTE INCHES50"L x 52"W x 50"H
  • VOLTAGE460 3-Phase
  • WEIGHT LBS1837
Customer Review

Not Yet Reviewed

Product Q & A

There are 3 questions and 3 answers for this product.

  • I see that it requires 460 Volt What is the full load amps? Does the unit come with controls for up/Down/E-Stop

    Question Asked By: Michael, January 16, 2019

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Michael. The Full Load Amperage is 7.8 amps. The unit’s Hand Control, features two buttons: one for Up and the other for Down. This Control is essentially a “dead-man” switch, so that when either button is released, the unit stops automatically. Thank you for your time.

  • What is the max height container that would fit under the tension bar? I understand the box size to be 51 1/2" x 50 " is this correct? Thanks

    Question Asked By: Mitch, January 11, 2019

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Mitch. The Chute is 52”W x 50”L Usable and the Max Hold Down (which would be the Height) is 50”. Although the Max Hold Down is 50”, the unit features a retaining bar to hold-down 24"H, 30"H and 36"H containers. For more information, please click the 'Specifications' pdf button on the webpage. Thank you for your time.

  • Can this be used for outside use.

    Question Asked By: MITCH, January 11, 2019

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Mitch. That type of item may be special ordered through our sales team at 1.888.978.7759. Thank you for your question.
