4 Jaw Front Mount Dead Length Collet Chuck - 8" - Table Mount - Pratt Burnered MCA8

4 Jaw Front Mount Dead Length Collet Chuck - 8" - Table Mount - Pratt Burnered MCA8

Item #: WBB2229674

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,323.00

$220.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,323.00 or save 5% on purchase.

Quantity

Customers Also Viewed

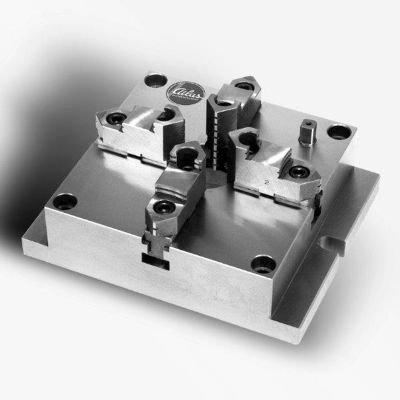

4 Jaw Front Mount Dead Length Collet Chuck - 8" - Table Mount - Pratt Burnered MCA8

Features:
  • Universal scroll chuck design
  • End-surface clamping design enables fast efficient mounting of several chucks to a worktable
  • Super thin design allows greater Z-axis machining
  • Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks
  • Milled key-slots on the base plate allows accurate quick changing of the chucks
  • Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
  • American standard, hard top and master jaws
  • One year warranty


Product Specifications

  • DESCRIPTIONSuper Thin Low Profile Square Chuck
  • BRANDPratt Burnerd
  • INTERNAL GRIP RANGE2.44" Min - 6.34" Max
  • MANUFACTURER'S WARRANTY1 Year
  • THROUGH HOLE2.17"
  • MANUFACTURERS PART NUMBERMCA8
  • NUMBER OF PIECES1
  • SERIESSeries MCA
  • STYLEManual
  • CHUCK SIZE8"
  • EXTERNAL GRIP RANGE.20" Min - 6.38" Max
  • MOUNTTable
  • NUMBER OF JAWS4
  • TYPESelf-Centering
