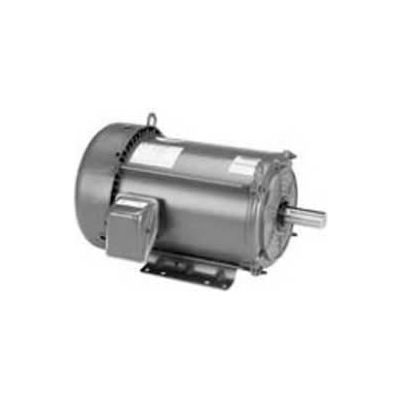

Marathon Motors Metric Motor, E2138, 184TTFW16040, 5HP, 1800RPM, 575V, 3PH, 184T FR, TEFC

Actual product may differ from image shown

Marathon Motors Metric Motor, E2138, 184TTFW16040, 5HP, 1800RPM, 575V, 3PH, 184T FR, TEFC

Item #: WBB870877

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $577.00

$96.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Metric Motor, E2138, 184TTFW16040, 5HP, 1800RPM, 575V, 3PH, 184T FR, TEFC

Marathon's extensive line of 575 Volts, General Purpose motors are available in Open Drip-proof and TEFC construction in three phase. Horsepower sizes available from stock range from 1/2 HP through 100 HP.

  • HORSEPOWER 5
  • ENCLOSURE TEFC
  • FRAME 184T
  • MOUNTING Rigid
  • PHASE 3
  • MOTOR RPM 60Hz 1800
  • VOLTAGE 575
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 86
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 1701-1800
  • ENCLOSURE TYPE Totally Enclosed
  • IP CODE 43
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # E2138
  • BRAND Marathon Motors
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6206
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • ASSEMBLY F1 (F2 Modification Available)
  • KVA-CODE J
  • FL AMPS 5.1
  • INSULATION CLASS F
  • FL EFFICIENCY 0.895
  • BEARING-OPP-DRIVE-END 6205
  • BEARING-DRIVE-END 6206
  • 60 HERTZ kW 3.70
  • MODEL NUMBER 184TTFW16040
