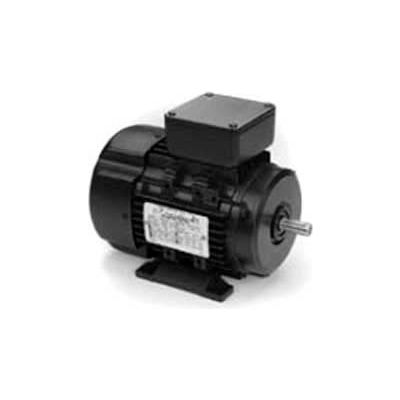

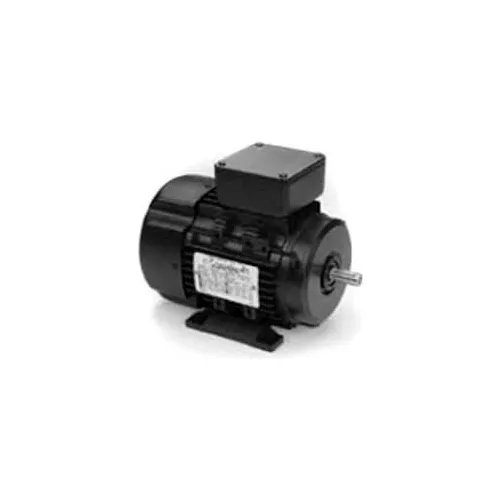

Marathon Motors Metric Motor, R307, 71T17FH5327, 1/2-.37HP, 1800RPM, 230/460V, 3PH, 71 FR, TEFC

Actual product may differ from image shown

Marathon Motors Metric Motor, R307, 71T17FH5327, 1/2-.37HP, 1800RPM, 230/460V, 3PH, 71 FR, TEFC

Item #: WBB870569

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $354.95

Save $17.75 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Metric Motor, R371, 80T11FH5412, 3/4-.55HP, 1200RPM, 230/460V, 3PH, 80 FR, TEFC

Marathon Motors Metric Motor, R371, 80T11FH5412, 3/4-.55HP, 1200RPM, 230/460V, 3PH, 80 FR, TEFC

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

Marathon Motors Metric Motor, R307, 71T17FH5327, 1/2-.37HP, 1800RPM, 230/460V, 3PH, 71 FR, TEFC

Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.

Weights & Dimensions

  • Opposite End Bearing Size 6203
  • Weight 16
  • Drive End Bearing Size 6203

Product Details

  • 60 Hertz kW 0.37 kW
  • Mounting Location Rigid
  • Assembly Required F3
  • Bearing Drive End 6203
  • 50 Hertz Kilowatts 0.37 kW
  • Ambient Temperature 40 °C
  • Nameplate RPM 1800 rpm
  • KVA Code H
  • IP Code 55
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • 50 Hertz SF 1.15
  • 50 Hertz Horsepower 1/2 HP
  • Bearing Opp Drive End 6203
  • Voltage 230/460 V
  • Frame 71
  • Service Factor 1.15
  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure TEFC
  • Orientation Horizontal
  • Starting Type Line or Inverter
  • 50 Hertz RPM 1500 rpm
  • Full Load Efficiency 0.74
  • Brand Marathon Motors
  • Full Load Amps 1.8/0.9 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Manufacturers Part Number R307
  • 50 Hertz Full Load Amps 1.8/0.9 FLA
  • 50 Hertz Voltage 200/400 V

Compliance & Certifications

  • CE Approved Y
  • NEMA Design B
  • CSA Certified Y
  • UL Recognized Construction
