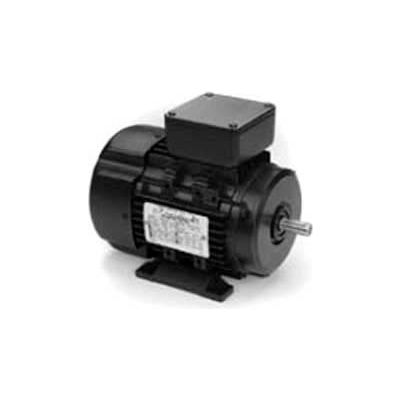

Marathon Motors Metric Motor, R352A, 100LTFC6536, 4-3HP, 1800RPM, 230/460V, 3PH, 100L FR, 100L

Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.

Product Details

  • 60 Hertz kW 2.98 kW
  • Mounting Location Rigid
  • Assembly Required F3
  • Bearing Drive End 6206
  • 50 Hertz Kilowatts 2.24 kW
  • 50 Hertz FLE 88.5 FLE
  • Ambient Temperature 40 °C
  • Nameplate RPM 1800 rpm
  • KVA Code K
  • IP Code 54
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • 50 Hertz SF 1.15
  • 50 Hertz Horsepower 3 HP
  • Bearing Opp Drive End 6205
  • Voltage 230/460 V
  • Frame 100L
  • Service Factor 1.15
  • Horsepower 4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure TEFC
  • Orientation Horizontal or Shaft Down
  • Starting Type Line or Inverter
  • 50 Hertz RPM 1500 rpm
  • Full Load Efficiency 89.5
  • Brand Marathon Motors
  • Full Load Amps 10.0/5.0 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Hertz 60/50 Hz
  • Motor RPM 50 Hertz 1500 rpm
  • Manufacturers Part Number R352A
  • 50 Hertz Full Load Amps 9.2/4.6 FLA
  • 50 Hertz Voltage 200/400 V

Compliance & Certifications

  • NEMA Design B
  • UL N
  • CE Approved Y

Weights & Dimensions

  • Weight 105
