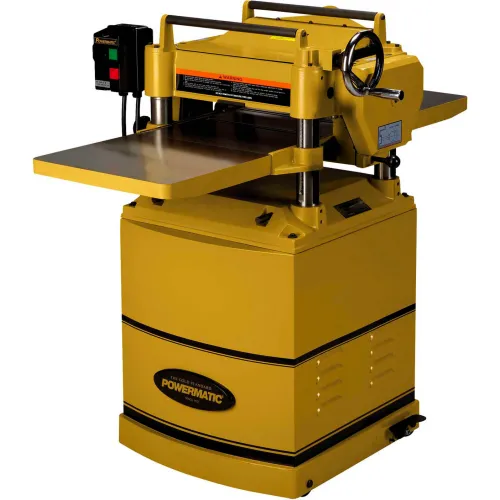

Powermatic 1791213 Model 15HH-15S 3HP 1-Phase 230V 15" Planer W/Byrd Shelix Helical Cutterhead

Powermatic 1791213 Model 15HH-15S 3HP 1-Phase 230V 15" Planer W/Byrd Shelix Helical Cutterhead

Item #: WBB57933

Not Yet Rated

Free Shipping

$3,931.43 up to 19% OFF

Price: $3,199.99

$533.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4 dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.

Features:

  • The Byrd® helical cutterhead with 74 four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems
  • Powerful 3HP TEFC motor controlled with a magnetic switch for safety
  • Three V-belts transfer maximum power to the cutterhead
  • Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8 maximum depth of cut and trouble free operation
  • Large cast iron handwheel positions table quickly and easily
  • Large, precision ground cast iron table and extensions provide maximum workpiece support
  • Two speed gearbox features automatic chain tensioner
  • Steel top-mounted return rollers speed repetitive cuts
  • Angled dust chute with 4 port positions collection hose away from the work area while providing efficient chip and dust collection

  • FEED RATE (FPM) 16/20
  • PREWIRED VOLTAGE 230
  • MOTOR PHASE 1
  • MOTOR HORSEPOWER 3
  • DUST COLLECTION MINIMUM REQUIRED (CFM) 800
  • DUST PORT DIAMETER INCHES 4
  • TABLE SIZE INCHES (L X W) 48 X 15
  • MAXIMUM DEPTH OF CUT INCHES 1/4
  • AMPS 15
  • BRAND Powermatic
  • MANUFACTURERS PART NUMBER 1791213
  • COLUMN DIAMETER INCHES 2-3/16
  • TYPE Planer
  • MODEL 15HH
  • VOLTAGE 230
  • NUMBER OF KNIVES OR INSERTS 74
  • CUTTERHEAD DIAMETER INCHES 2-7/8
  • CUTS PER MINUTE 13500
  • MAXIMUM PLANING THICKNESS INCHES 6
  • CUTTERHEAD SPEED (RPM) 4500
  • MAXIMUM PLANING WIDTH INCHES 14-7/8
  • TYPE OF CUTTERHEAD Helical Inserts
  • APPROVALS OR CERTIFICATIONS CSA Certified
  • MINIMUM PLANING LENGTH INCHES 8
  • MAXIMUM FULL WIDTH DEPTH OF CUT INCHES 1/8
  • STYLE Floorstanding
  • MANUFACTURERS LIMITED WARRANTY YEARS 5
