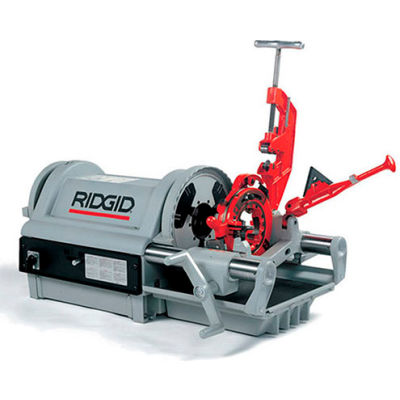

RIDGID® Model No. 1224 Threading Machine, Npt, 120V, 60 Hz, 1/2"-4"
Model 1224 Threading Machine Threads 1/4"-2" pipe at 36 RPM and 2 1/2"-4" at 12 RPM. The 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C. An induction motor insures sound levels well within the limits set by the regulating authorities. A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced. 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads. Constant and proper lubrication of dies and workpiece with through-head oiling. Approved by CSA.
Model 1224 Threading Machine Threads 1/4"-2" pipe at 36 RPM and 2 1/2"-4" at 12 RPM. The 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C. An induction motor insures sound levels well within the limits set by the regulating authorities. A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced. 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads. Constant and proper lubrication of dies and workpiece with through-head oiling. Approved by CSA.
-
Features:
- Model No. 1224 threading machine with foot switch.
- One No. 714 (914) 2 1/2"- 4" receding self-opening die head.
- One No. 711 (911) 1/4"- 2" universal self-opening die head.
- One set 1/2"- 3/4" universal alloy dies.
- One set 1" - 2" universal alloy dies.
- One set 2 1/2"- 4" 1224 high-speed dies.
- One No. 764 cutter.
- One No. 744 reamer.
- One spare F-229 cutter wheel.
- One gallon Nu-Clear oil.
- Three hex keys.
- One 3/4" combination wrench.
Weights & Dimensions
- Pipe/Tube Size 1/2 in (NPT) (Min), 4 in (NPT) (Max)
- Weight 490 lbs
Product Details
- Pipe Capacity 1/2 in (NPT) (Min), 4 in (NPT) (Max)
- Voltage 120 V
- Description NPT Threading Machine
- Includes 714 Die Head, Dies, Cutter, Reamer, Cutter Wheel, Oil,Hex Keys,Wrench
- Power Capacity 1 1/2 hp (Max)
- Type Power Threading Machine
- Brand RIDGID
- Package Quantity 1
- Speed 36, 12 rpm
- Frequency 60.0 Hz
- Hertz 60 Hz
- Manufacturers Part Number 26092
Warranty
- Warranty Lifetime
