Applications:
- Fans
- Pumps
- Blowers
- Conveyors
- Compressors
- Industrial machines
- Other general purpose applications

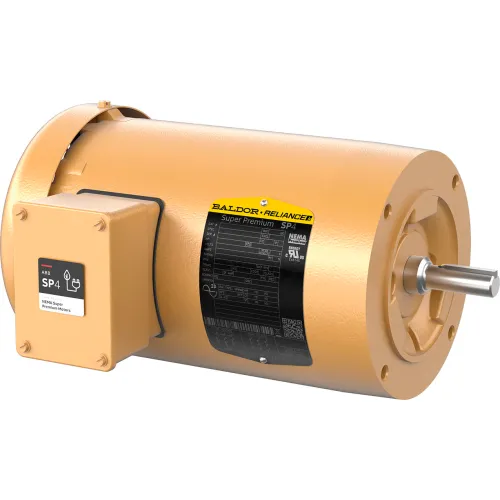

Baldor-Reliance Motor 0.75HP, 1175RPM, 3PH, 60HZ, 56C, 3526M, TEFC, F1
Write a Review
|
Questions & Answers (0)
Product Description
General purpose, Three Phase Motor, Totally Enclosed, Foot Mounted, 230/460V, 0.75HP, 1175RPM, 3PH, 60HZ, 56C, 3526M, TEFC, F1230/460.
Applications:
Applications:
PRICE
$815.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 41 |
| Dimension C | 12-15/16 in |
Product Details
| Power Factor | 60 |
| Bearing Opp Drive End | 6203 |
| KVA Code | L |
| Motor RPM 60 Hertz | 1200 rpm |
| Mounting Location | C-Face Footless |
| Phase | 3 |
| Manufacturers Part Number | VSPM3543 |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 6205 |
| Brand | Baldor-Reliance |
| Insulation Class | F |
| Horsepower | 3/4 HP |
| Frame | 56C |
| Hertz | 60 Hz |
| Design Code | B |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 82.5 |
| Nameplate RPM | 1175 rpm |
| Full Load Amps | 1.4 FLA |
| Duty | Continuous |
| Poles | 6 |
| Ambient Temperature | 40 °C |
