Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long life and moisture resistance. Dynamically balanced rotor and shaft assembly. High efficiency reduced amperage energy saving designs. Stator impregnated with extra heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision in conduit box. Manual reset overload protector protects against automatic resets. High overload capacities provided by service factor.
Weights & Dimensions
- Shaft Diameter 7/8
- Weight 46 lbs
Product Details
- Nameplate Amps 18.4/9.2 A
- Mounting Location C-Face Rigid
- RPM 1740 rpm
- Rotation CCW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- Efficiency 82
- RPM Range 1701-1800 rpm
- Shaft End Bearing 6205
- Voltage 115/208-230 V
- Frame 145
- Service Factor 1.0
- Horsepower 2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Design Capacitor Start Capacitor Run
- Enclosure TEFC
- Phase 1
- Compatible Part/Model Number Baldor, CL3516TM
- UPC 69172001702
- Brand Leeson
- Motor RPM 60 Hertz 1740 rpm
- Thermal Protection Manual
- Hertz 60 Hz
- Manufacturers Part Number 121465.00
Compliance & Certifications
- CSA Certified N
- UL N
There are no questions for this product.

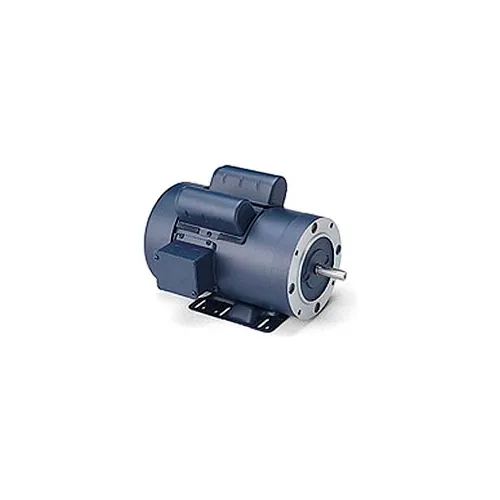

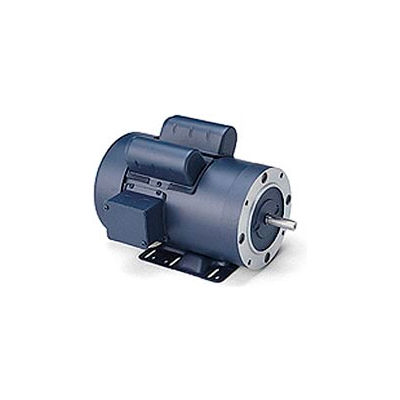

Leeson Motors - 2HP, 115/208-230V, 1740RPM, TEFC, Rigid C Mount, 1.0 S.F.
