Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

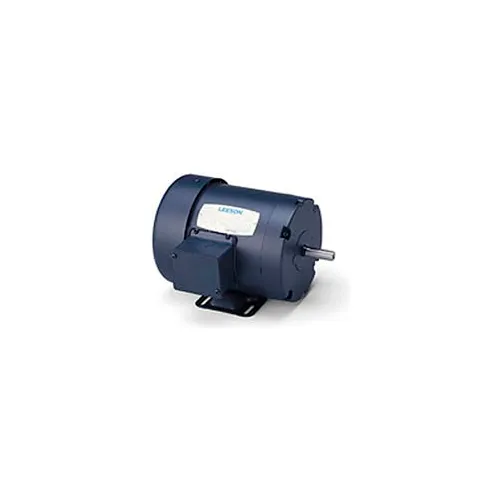

Leeson G151355.22, Premium Eff., 5 HP, 860 RPM, 208-230/460V, 254T, TEFC, Rigid
Write a Review
|
Questions & Answers (0)
Product Description
General Purpose, 3-Phase Motor: 5HP, 860 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 254 Frame, Rigid Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 15.9-14.4/7.2&, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 88.3, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Diameter 1 5/8.
PRICE
$4,349.00
1
1
Free Shipping Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 341 |
| Shaft Diameter | 1-5/8 |
Product Details
| Motor RPM 60 Hertz | 860 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | G151355.22 |
| Enclosure | TEFC |
| Design | Sq Cage Inductor Run |
| Service Factor | 1.15 |
| Bearing Drive End | 6309 |
| Brand | Leeson |
| Efficiency | 88.3 |
| Horsepower | 5 HP |
| Efficiency Type | Standard |
| Frame | 254T |
| Hertz | 60 Hz |
| Rotation | CCW/CW ° |
| Thermal Protection | No |
| Enclosure Type | Totally Enclosed |
| Voltage | 208-230/460 V |
| Nameplate RPM | 860 rpm |
| Full Load Amps | 15.9-14.4/7.2 FLA |
| Frame Material | Cast Iron |
| Duty | Continuous |
| Compatible Part/Model Number | Baldor M2280T, WEG 000509EP3E254T |
| Ambient Temperature | 40 °C |
| RPM Range | 0-1000 rpm |
Compliance & Certifications
| CSA Certified | Y |
| UL | N |
