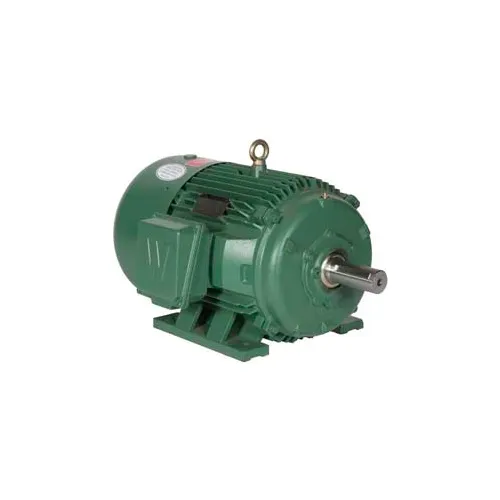

Worldwide Electric Motor PEWWE5-36-184T, PREM EFF, TEFC, Rigid, 3 PH, 184T, 208-230/460V, 6 FLA

Worldwide Electric T-Frame Motor PEWWE7.5-12-254TC, GP, TEFC, Rigid-C, 3 PH, 254TC, 10.8 FLA Worldwide Electric T-Frame Motor WWHT7.5-12-254TC, GP, TEFC, Rigid-C, 3 PH, 254TC, 10.8 FLA Features 1 - 300 HP 3600, 1800 and 1200 RPM 208-230/460 volt (1 - 200 HP) 460 volt (250 - 300 HP) TEFC enclosure 1.15 service factor Class F insulation C-face - rigid base EISA-Compliant - high efficiency NEMA Design C - high torque (1 - 200 HP, 1800 and 1200 RPM) Suitable for 50 Hz operation with 1.0 service factor (1 - 150 HP)

Some general purpose applications require a motor that runs on 208-230/460 volt power. These motors range from 1 Hp to 50 Hp in TEFC. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations. Features Heavy gauge steel and cast iron frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year Warranty Application(s) Typical applications ...

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-Proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others. Features Heavy gauge steel frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty Application(s) Typical ...

General Purpose, 3-Phase Motor: 5HP, 1760 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 184 Frame, Rigid Mount, 208-220/460V, 3PH, 60HZ, Name Plate Amps 14-13/6.5, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 87.5, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Length 2-1/4, Shaft Diameter 1 1/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the ...

Some applications require NEMA motors which operate on true 50 Hz power. Where this 50 Hz power is all that is available, these NEMA motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.
