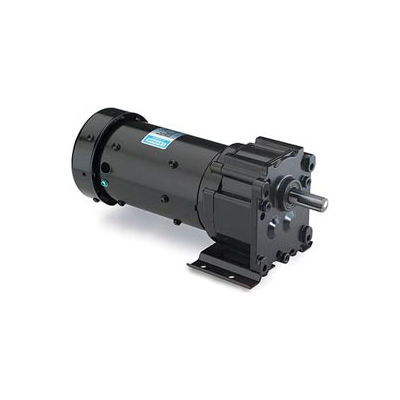

Leeson M1145030.00, 1/6 HP, 16 RPM, 115/230V, 1-Phase, TEFC, P240, 103:1 Ratio, 391 In-Lbs

Leeson M1145030.00, 1/6 HP, 16 RPM, 115/230V, 1-Phase, TEFC, P240, 103:1 Ratio, 391 In-Lbs

Item #: WBB234589

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$917.00 up to 45% OFF

Price: $499.95

$83.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Leeson M1145030.00, 1/6 HP, 16 RPM, 115/230V, 1-Phase, TEFC, P240, 103:1 Ratio, 391 In-Lbs

AC Gearmotor with Parallel Shaft. 1/6HP, 16 RPM, Gear Ratio 103 to 1, Overhung Load 399 Pounds, 391 Lb. In. Full Load Torque, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 38 Frame, 115/230V, 1PH, Name Plate Amps 2.1.

Single phase gearmotors are totally enclosed for continuous duty, general purpose applications. Permanent split capacitor designs are rated for 115/230VAC, 60/50 Hertz input, and have starting torques equal to the running torques. The in-line gearing is of precision machined steel, with first stage steel helical gear followed by spur type gears. Lubrication is by semi-fluid grease, reducing possibility of leakage and providing permanent lubrication. Output shafts have needle bearings for high load capacities. Shafts are hardened steel.

These gearmotors are designed for mounting at any angle, but shaft up with motor below should be avoided to prevent leakage of lubricant into the motor should the motor's shaft seal fail. If these gearmotors are stalled, gearhead damage may result, especially in the ratios of 60:1 and higher. Provisions to limit the torque are recommended. The torque values listed are the recommended full load torque values for reasonable gear life. Overhung load capacities shown are at center of outputshaft. All PZ Series gearmotors are supplied with continuous duty "run" capacitor. Conduit box is not supplied with motor. These model PZ gearmotors have the same mounting dimensions as Bodine model D and Z gearmotors, Bison 100 gearmotors, and Baldor/Boehm PSS, plus many Dayton gearmotors.


Click here to see our full selection of Motor Controls and Drives.

Compatibility
Bison: 016-226-6102
Bodine: 485(Leeson motor is PSC design, Leeson gearbox mounting face includes 3-point mounting, Leeson motor is dual voltage rated - 115/230 )
Grainger/Dayton: 6Z817

Product Specifications

  • BRANDLeeson
  • MANUFACTURERS PART NUMBERM1145030.00
  • HORSEPOWER1/6
  • GEAR MOTOR RPM16
  • VOLTAGE115/230
  • PHASE1
  • HERTZ60
  • SERVICE FACTOR1
  • ENCLOSURETEFC
  • FL AMPS2.1/1.05
  • DUTYContinuous
  • INSULATION CLASSF
  • FRAME MATERIALSteel
  • TYPE & FRAME STYLEP243-38F
  • OUTPUT TORQUE (IN-LBS)391
  • RATIO TO 1103
  • SERIESP240
  • ULYes
  • CSAYes
  • WEIGHT LBS18
  • ROTATIONReversible
  • OVERHUNG LOAD (LBS.)399
  • AMBIENT TEMP C40
  • MODELCM38P17FZ9
  • GEARHEAD / SHAFT TYPEParallel
  • HP RANGE1/7 to 1/5
  • RPM RANGE0-1000
  • ENCLOSURE TYPETotally Enclosed
  • is_motorYes
