Leeson M1125041.00, 1/8 HP, 170 RPM, 180VDC, TENV, P300, 11:1 Ratio, 43 In-Lbs
See all 86 items in product family

Leeson M1125041.00, 1/8 HP, 170 RPM, 180VDC, TENV, P300, 11:1 Ratio, 43 In-Lbs

Item #: WBB234671

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $733.00 Save up to 43%
Qty Price
1-2 $432.95 ea.
3+ $415.95 ea.
Product Information
Customer Review
Product Q&A

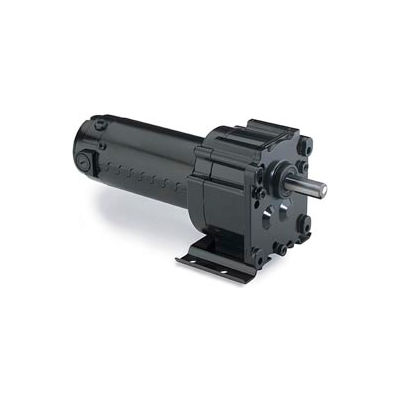

Leeson M1125041.00, 1/8 HP, 170 RPM, 180VDC, TENV, P300, 11:1 Ratio, 43 In-Lbs

DC Gearmotor with Parallel Shaft. 1/8HP, 170 RPM, Gear Ratio 11 to 1, Overhung Load 196 Pounds, 43 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 30 Frame, 180V, Name Plate Amps 0.66.

Unit is totally enclosed, permanent magnet DC gearmotor, performance matched for continuous duty. Features precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Conduit box not included with motor.

Designed for mounting at any angle, but shaft up with motor below should be avoided to prevent leakage of lubricant into the motor should the motor's shaft seal fail. Overhung load capacities shown are at center of output shaft. The motor's stall torque exceeds recommended full load torques. A current limiting device such as an SCR control should be used to prevent damage. Model 300 gearmotors have the same mounting dimensions as Bison's 300 and many Dayton gearmotors


Click here to see our full selection of Motor Controls and Drives.

Documents

Documents are in PDF format

Product Specifications

    • BRANDLeeson
    • MANUFACTURERS PART NUMBERM1125041.00
    • HORSEPOWER1/8
    • GEAR MOTOR RPM170
    • VOLTAGE180
    • SERVICE FACTOR1
    • ENCLOSURETENV
    • FL AMPS0.66
    • DUTYContinuous
    • INSULATION CLASSF
    • FRAME MATERIALSteel
    • TYPE & FRAME STYLEP302-30E
    • OUTPUT TORQUE (IN-LBS)43
    • RATIO TO 111
    • SERIESP300
    • ULYes
    • CSAYes
    • WEIGHT LBS13
    • ROTATIONReversible
    • OVERHUNG LOAD (LBS.)196
    • AMBIENT TEMP C40
    • MODEL985.619
    • GEARHEAD / SHAFT TYPEParallel
    • HP RANGE1/11 to 1/8
