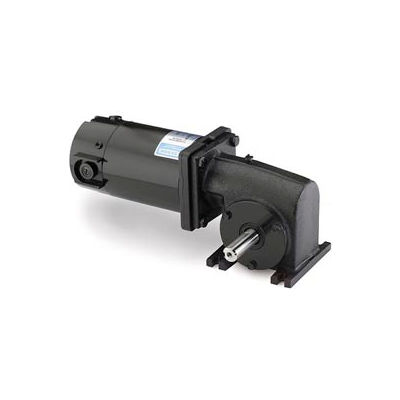

Leeson M1135038.00, 1/8 HP, 62 RPM, 90VDC, TENV, 13, 40:1 Ratio, 70 In-Lbs

Leeson M1135038.00, 1/8 HP, 62 RPM, 90VDC, TENV, 13, 40:1 Ratio, 70 In-Lbs

Item #: WBB234749

(2)

Enter zip code for delivery date estimate

Shipping to 10465 change

$701.00 up to 45% OFF

Price: $386.95

Save $19.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Leeson M1135038.00, 1/8 HP, 62 RPM, 90VDC, TENV, 13, 40:1 Ratio, 70 In-Lbs

DC Gearmotor with Right-Angle Shaft. 1/8HP, 62 RPM, Gear Ratio 40 to 1, Overhung Load 235 Pounds, 70 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 34 Frame, 90V, Name Plate Amps 1.4.

Worm-type right-angle gearing features hardened,steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are use and gearbox has all ball bearings. The housing is sealed and lubrication is permanent with an oil bath. The output shaft is field interchangeable from left hand style to right hand style by reassembly.

For optimum seal life, these right-angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather plug must be reoriented by using a 90 degree 1/8" NPT taper pipe elbow, not included. However, the motor portion of the gearmotor should never be mounted below the gearhead. Overhung load capacities shown are at center of outputshaft. Conduit box not supplied with motor


Click here to see our full selection of Motor Controls and Drives.

Compatibility
Baldor: GP7402(Leeson base mounting holes not 'Drop-in' replacement, Leeson has single output shaft, Leeson shaft center-line height from the base is 1.67 inches )
Bodine: 4144(Leeson armature voltage is 90V DC )
Grainger/Dayton: 4Z137(Leeson has .625 inch diameter shaft, Leeson shaft on left side facing the gearbox, Install conduit box kit M1760007 )
Minarik: 507-02-126

Product Specifications

  • BRANDLeeson
  • MANUFACTURERS PART NUMBERM1135038.00
  • HORSEPOWER1/8
  • GEAR MOTOR RPM62
  • VOLTAGE90
  • SERVICE FACTOR1
  • ENCLOSURETENV
  • FL AMPS1.4
  • DUTYContinuous
  • INSULATION CLASSH
  • FRAME MATERIALSteel
  • TYPE & FRAME STYLE13F40-34C
  • OUTPUT TORQUE (IN-LBS)70
  • RATIO TO 140
  • SERIES13
  • ULYes
  • CSAYes
  • WEIGHT LBS11
  • ROTATIONReversible
  • OVERHUNG LOAD (LBS.)235
  • AMBIENT TEMP C40
  • MODELCM34D25NZ6
  • GEARHEAD / SHAFT TYPERight-Angle
  • HP RANGE1/11 to 1/8
  • RPM RANGE0-1000
  • ENCLOSURE TYPETotally Enclosed
  • is_motorYes
Customer Review

4.5

  • 5 Star

    1
  • 4 Star

    1
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: February 24, 2016

    great value
    Your review:
    Ideal replacement at a great price point.
  • Reviewer: Anonymous

    Date: July 14, 2015

    Dependable motor
    Your review:
    This is used to drive a small conveyor belt and replaces one that ran flawlessly for 8 years.
