Baldor-Reliance Motor M3536, .33HP, 865RPM, 3PH, 60HZ, 56, 3520M, TEFC, F1, N

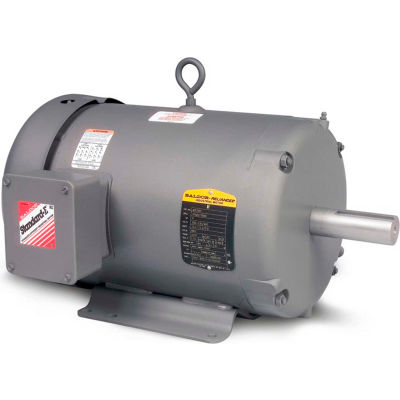

Actual product may differ from image shown

Baldor-Reliance Motor M3536, .33HP, 865RPM, 3PH, 60HZ, 56, 3520M, TEFC, F1, N

Item #: WBB391684

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$677.00 up to 20% OFF

Price: $541.00

$90.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $541.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .33HP,865RPM,3PH,60HZ,56,3520M,TEFC,F1,N

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Product Specifications

  • HORSEPOWER1/3
  • ENCLOSURETEFC
  • FRAME56
  • MOUNTINGRigid
  • NAMEPLATE RPM865
  • PHASE3
  • MOTOR RPM 60Hz865
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.35
  • AMBIENT TEMP C40
  • WEIGHT33
  • RPM RANGE0-1000
  • DESIGN CODEB
  • BEARING-DRIVE-END6205
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY62
  • INSULATION CLASSB
  • FL AMPS2.2/1.1
  • KVA-CODEN
  • 208V AMPS2.3
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #M3536
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR45
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES12.23
  • POLES8
  • SPEC. NUMBER35A11-92
