Baldor-Reliance Motor M3543T, .75HP, 1140RPM, 3PH, 60HZ, 143T, 3428M, TEFC, F

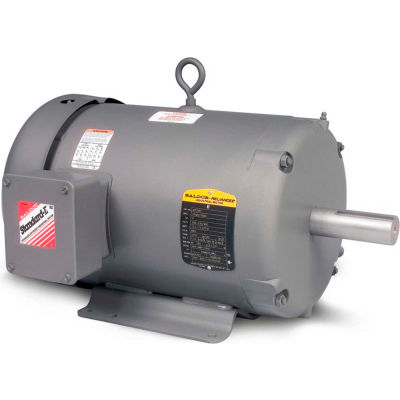

Actual product may differ from image shown

Baldor-Reliance Motor M3543T, .75HP, 1140RPM, 3PH, 60HZ, 143T, 3428M, TEFC, F

Item #: WBB391453

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$527.00 up to 20% OFF

Price: $421.95

Save $21.10 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1140RPM,3PH,60HZ,143T,3428M,TEFC,F

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME143T
  • MOUNTINGRigid
  • NAMEPLATE RPM1140
  • PHASE3
  • MOTOR RPM 60Hz1140
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT34
  • RPM RANGE1101-1200
  • DESIGN CODEB
  • BEARING-DRIVE-END6205
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY77
  • INSULATION CLASSB
  • FL AMPS3.3-3/1.5
  • KVA-CODEK
  • 208V AMPS3.3
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #M3543T
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR59
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES13.41
  • POLES6
  • SPEC. NUMBER34-3484W12
