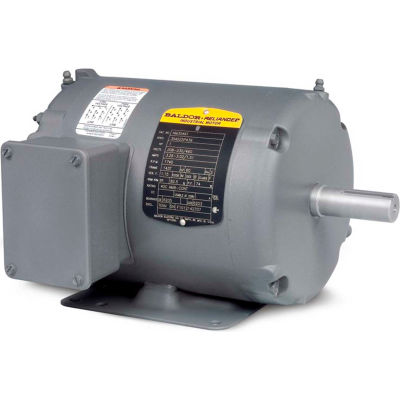

Baldor-Reliance Motor NM3454, .25HP, 1725RPM, 3PH, 60HZ, 48, 3413M, TENV, F1

Actual product may differ from image shown

Baldor-Reliance Motor NM3454, .25HP, 1725RPM, 3PH, 60HZ, 48, 3413M, TENV, F1

Item #: WBB390910

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$287.00 up to 20% OFF

Price: $229.95

Save $11.50 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .25HP,1725RPM,3PH,60HZ,48,3413M,TENV,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Product Specifications

  • HORSEPOWER1/4
  • ENCLOSURETENV
  • FRAME48
  • MOUNTINGRigid
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.35
  • AMBIENT TEMP C40
  • WEIGHT21
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY68
  • INSULATION CLASSF
  • FL AMPS1/.5
  • KVA-CODEK
  • 208V AMPS1.2
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #NM3454
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR66
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES9.62
  • POLES4
  • SPEC. NUMBER34A75-139G1
