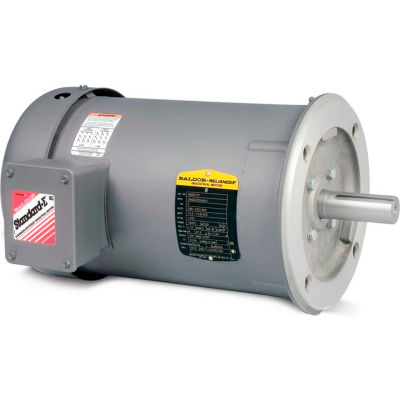

Baldor-Reliance Motor VM3534-5, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3413M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor VM3534-5, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3413M, TEFC, F1

Item #: WBB391252

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$314.00 up to 26% OFF

Price: $230.95

Save $11.55 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .33HP,1725RPM,3PH,60HZ,56C,3413M,TEFC,F1

Features:
  • 1.15 Service Factor
  • Positively locked drive end ball bearing
  • Dynamically balanced rotors
Typical Applications:
Pumps, fans, compressors, blowers, machine tools, conveyors and many applications requiring 575 volt power.

Product Specifications

  • HORSEPOWER1/3
  • ENCLOSURETEFC
  • FRAME56C
  • MOUNTINGC-Face Footless
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.35
  • AMBIENT TEMP C40
  • WEIGHT20
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY68
  • INSULATION CLASSB
  • FL AMPS0.64
  • KVA-CODEL
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #VM3534-5
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR57
  • DRIVE END FLANGEC-Face
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES11.35
  • POLES4
  • SPEC. NUMBER34A63-901
