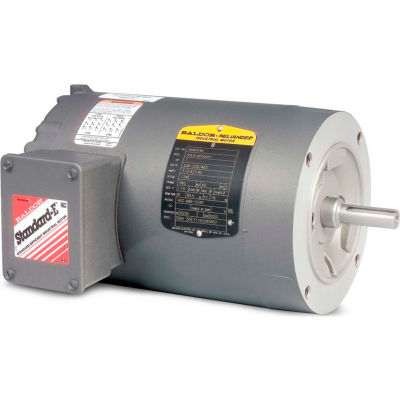

Baldor-Reliance General Purpose Motor, 208-230/460 V, 0.25 HP, 1725 RPM, 3 PH, 56C, TENV

Actual product may differ from image shown

Baldor-Reliance General Purpose Motor, 208-230/460 V, 0.25 HP, 1725 RPM, 3 PH, 56C, TENV

Item #: WBB910446

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $245.95

Save $12.30 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance General Purpose Motor, 208-230/460 V, 0.25 HP, 1725 RPM, 3 PH, 56C, TENV

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Features
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Application(s)
  • Pumps, fans, conveyors, machine tools, gear reducers.

Product Specifications

  • HORSEPOWER1/4
  • ENCLOSURETENV
  • FRAME56C
  • MOUNTINGRigid
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY64
  • INSULATION CLASSF
  • FL AMPS1.4-1.3/.65
  • KVA-CODEL
  • 208V AMPS1.4
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #KNM3454
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • BALDOR CATALOG NUMBERKNM3454
  • POWER-FACTOR56
  • C-DIMENSION INCHES10.25
  • TYPEGeneral Purpose Motor
  • SPEC. NUMBER34K13-895
